Product family
System scaffold
The cup-jointed frame of standards, ledgers and transoms you build access scaffold from.

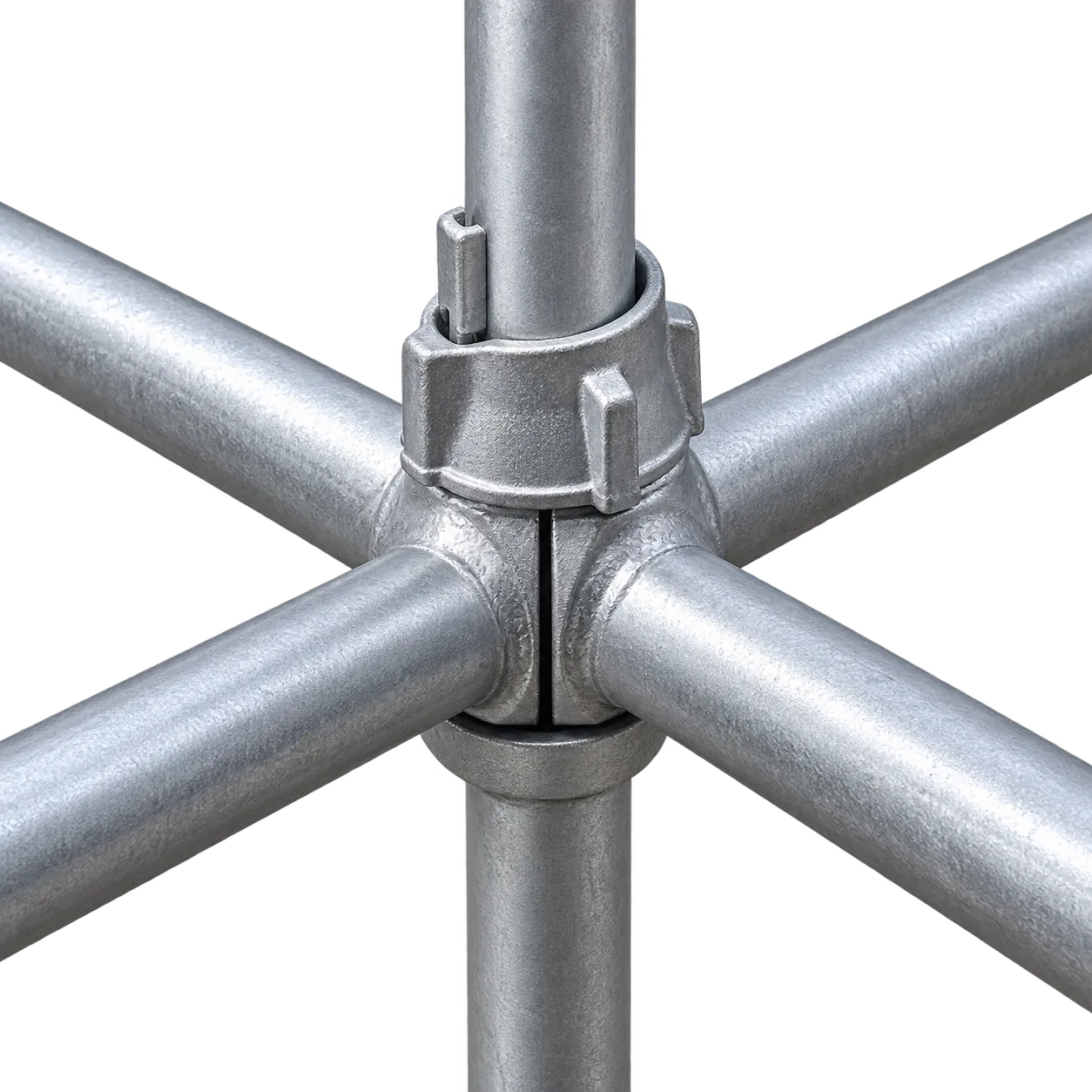

- Cuplock SystemStandards with cups every 0.5 m, locked to ledgers and transoms.
Product family
Scaffolding & Shoring
Temporary works must hold firm from start to finish. GV supplies the steel components that make it possible: cuplock standards and ledgers for system scaffold, steel planks for working decks, base jacks and heavy U-head jacks to level towers, adjustable props with their pins, nuts and threaded tubes for formwork, and trench struts to hold excavations open. We source each part to the size series and standard your project requires.
Explore scaffolding & shoring systems ↗
Six families
Nine products for scaffolding and shoring.
Organized by type. Know a product by another name? Find it in the trade-names list.
Product family
Working decks
The steel boards you lay across each lift to stand and work on.

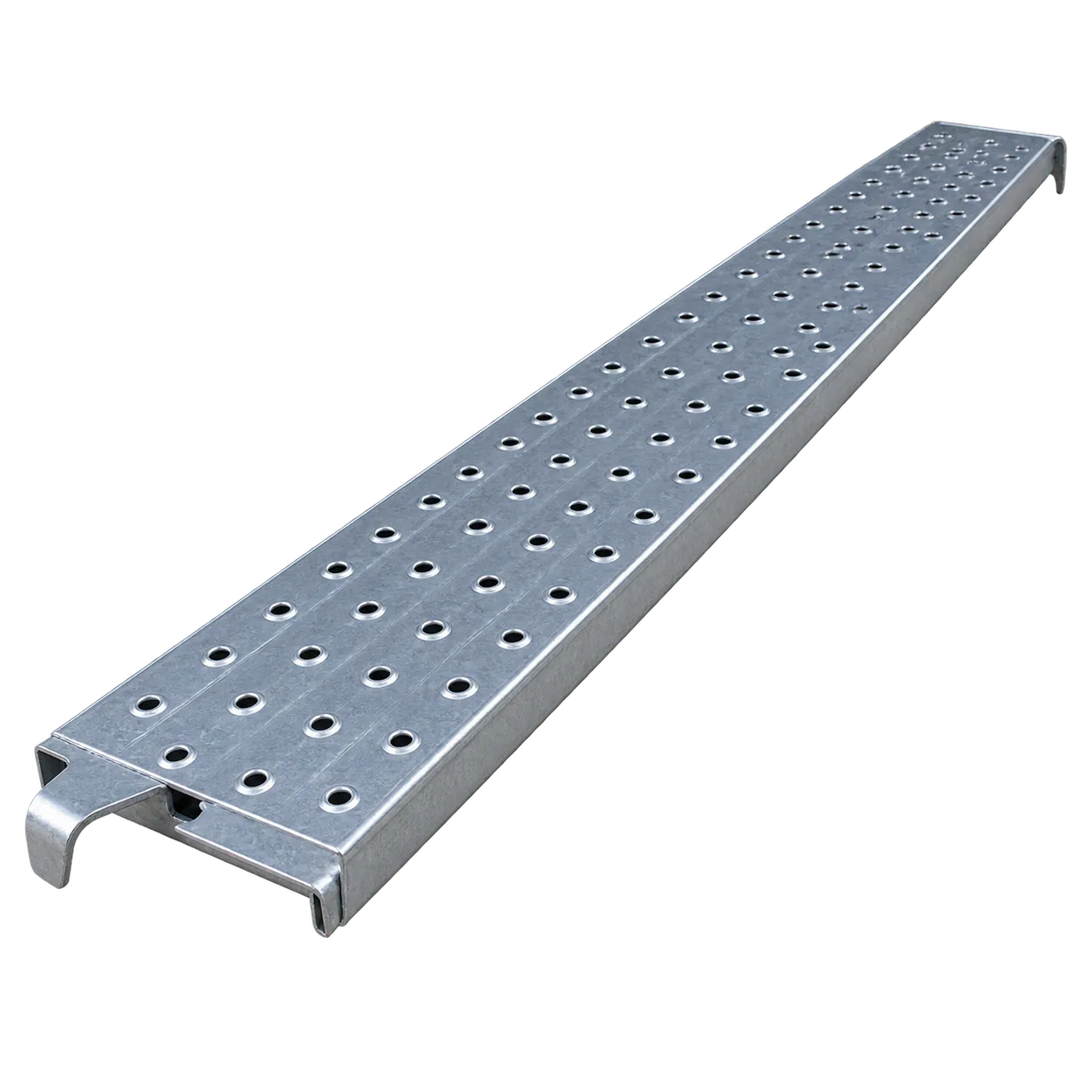

- PlanksForms the deck between ledgers or transoms.
Product family
Jacks
Threaded jacks that level a scaffold at the foot and carry beams at the top of a tower.
- Screw Jack with Base Plate & Wing NutLevels each standard on uneven ground.

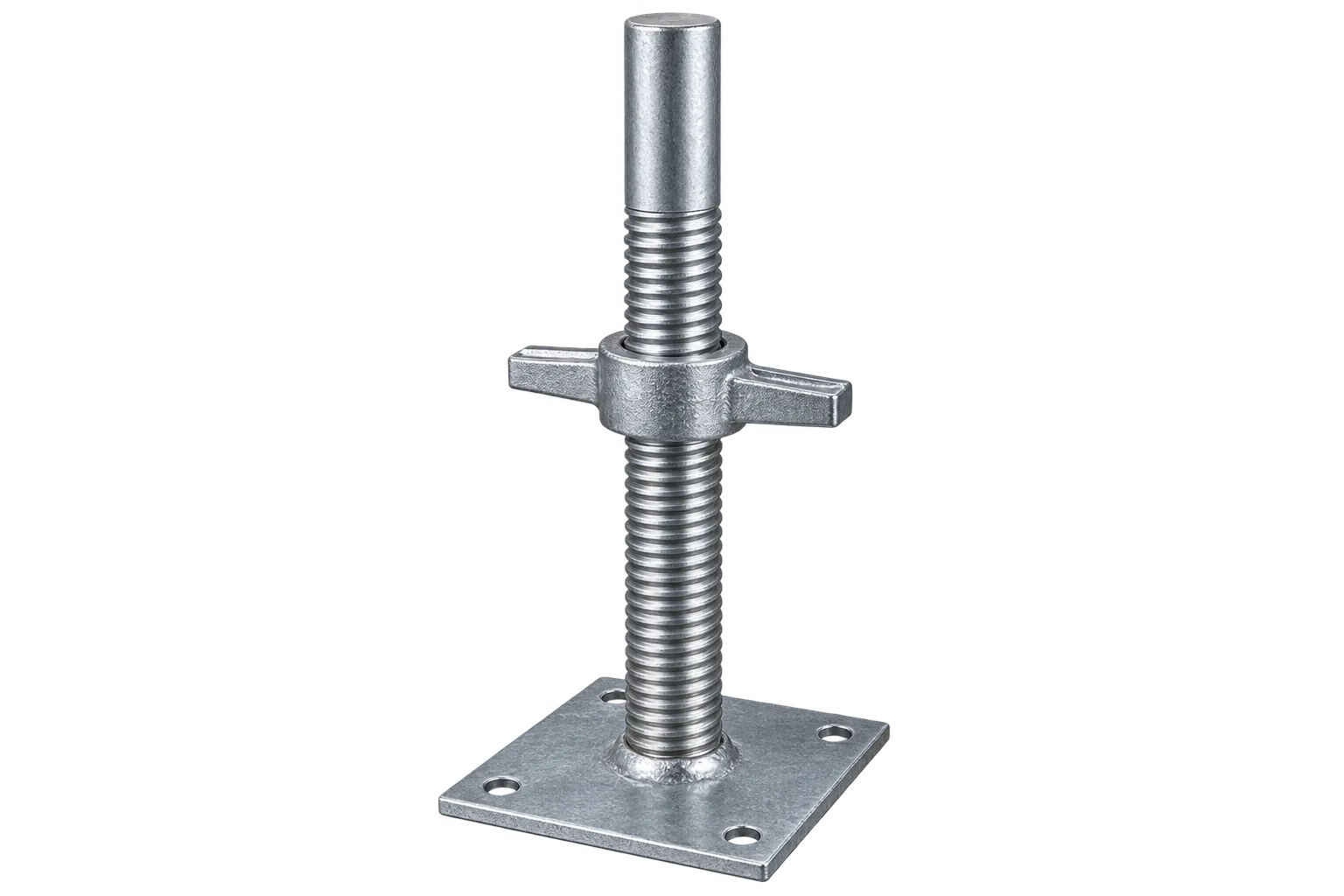

- Hi-Load Screw Jack with Wing NutTops a shoring tower with a U-head or fork head.
Product family
Props
Adjustable steel props in sizes #0 to #4, set to height under formwork or a slab.

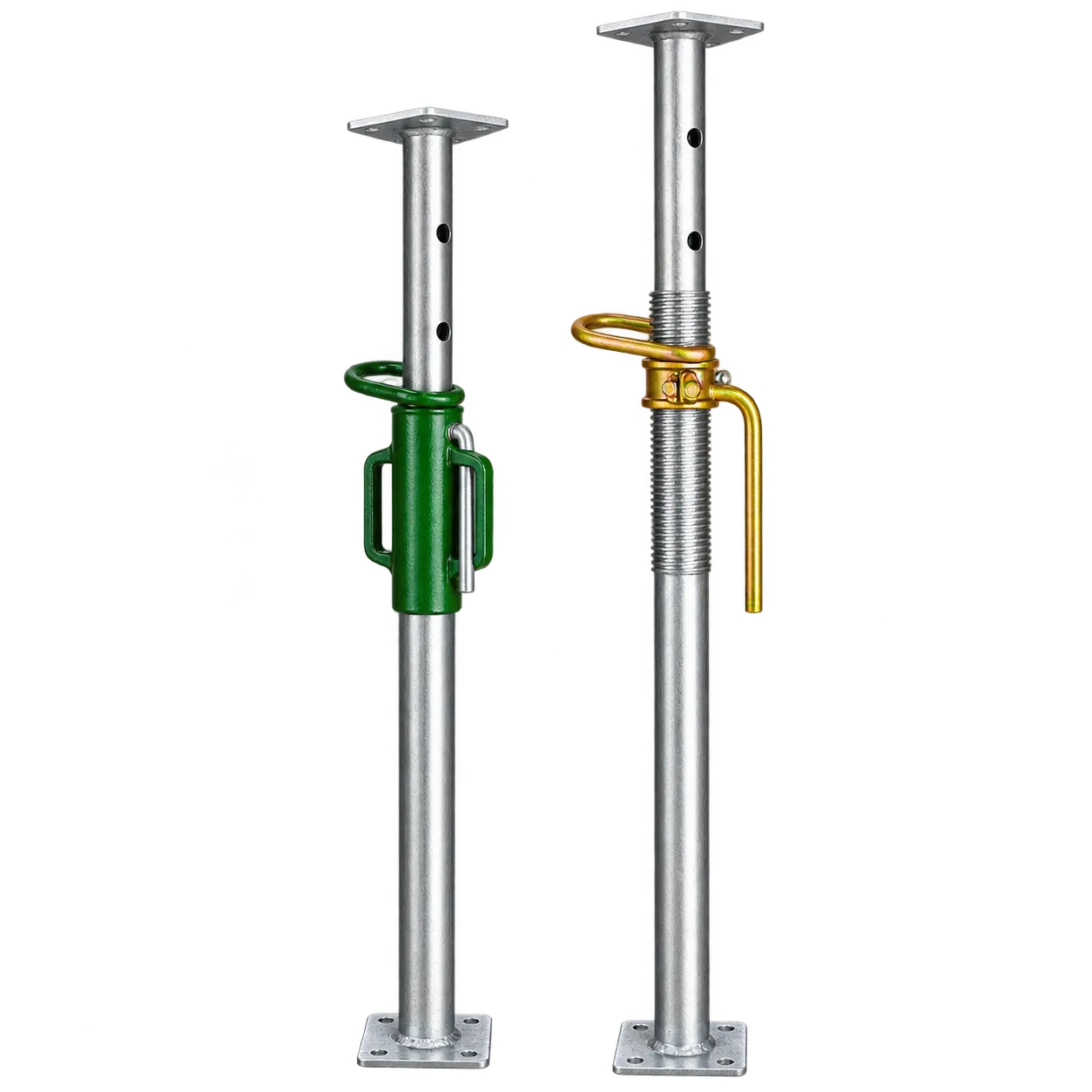

- PropsCarries formwork, slabs and beams at the set height.
Product family
Prop parts
The pin, nut and threaded sleeve you replace to keep props working.

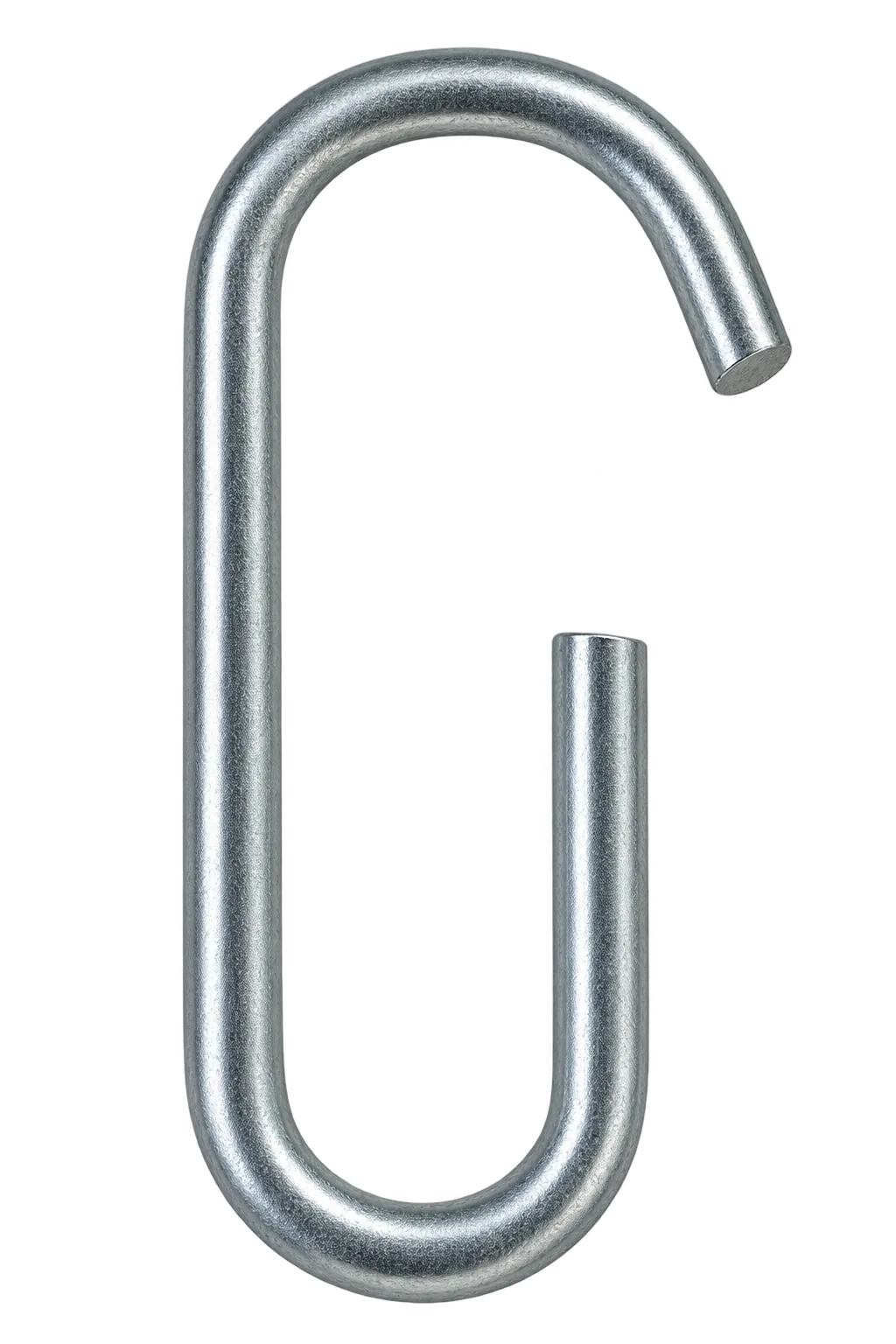

- G PinSets the coarse height through the inner tube.

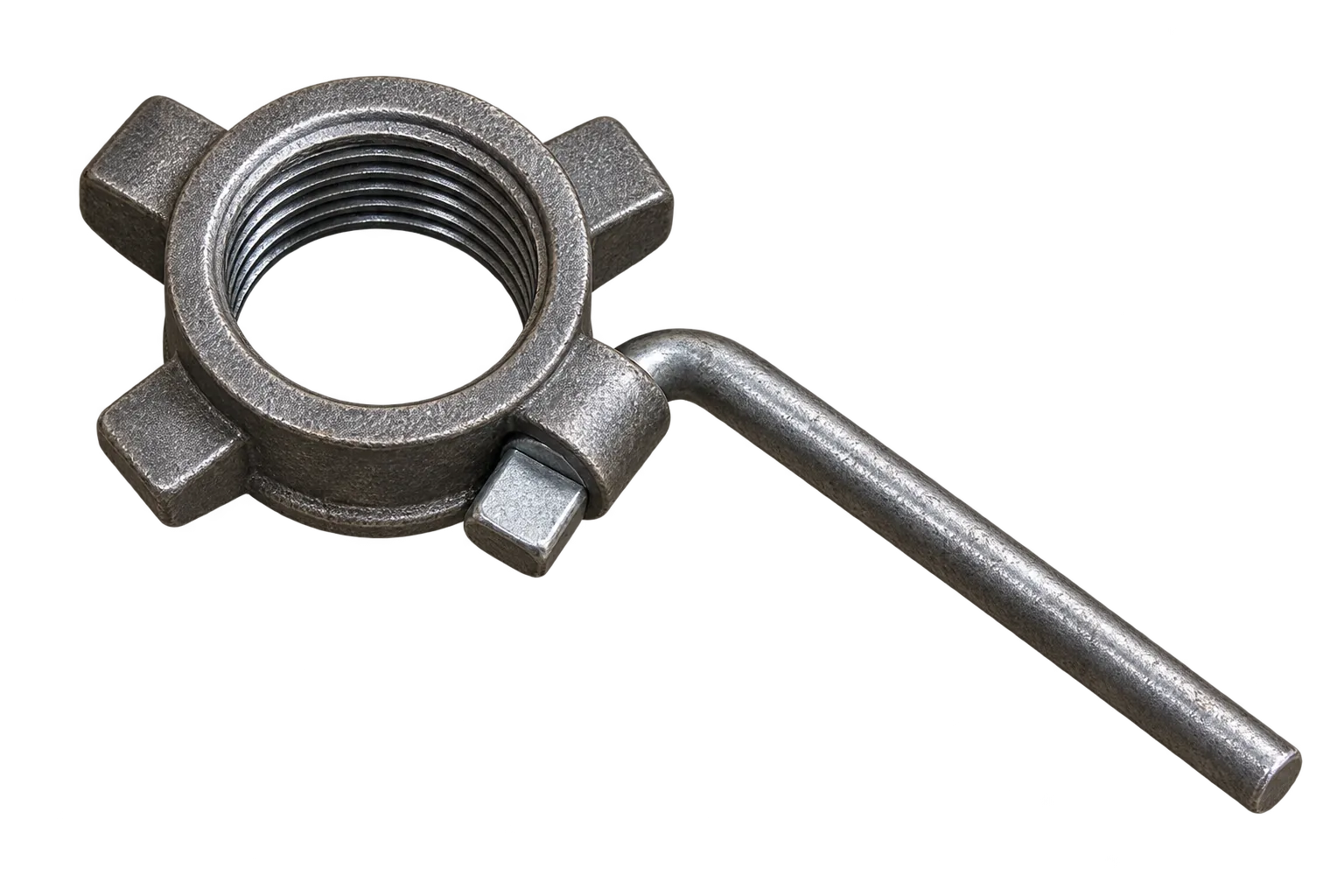

- Prop NutFine-tunes the height on the thread.

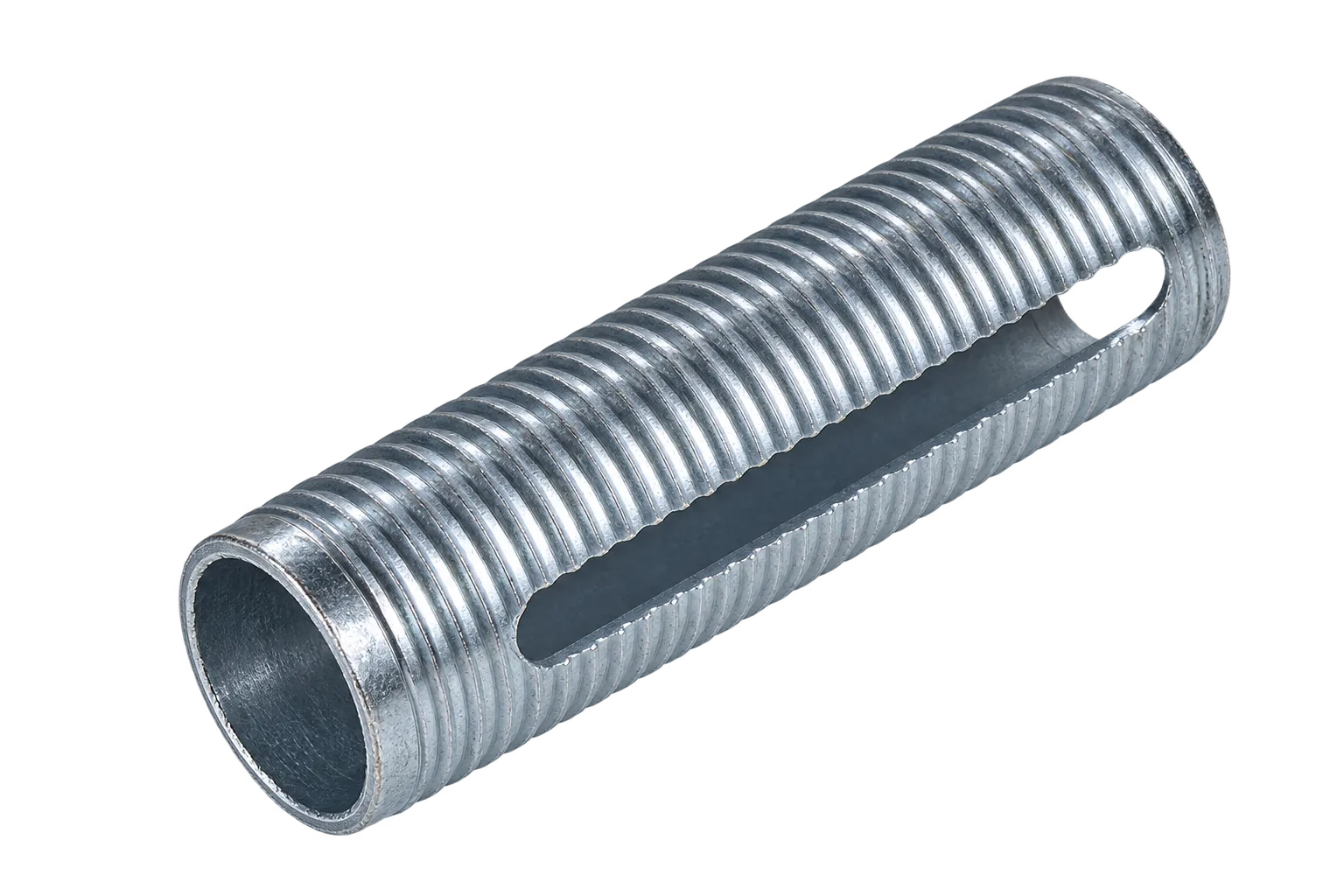

- Threaded TubeCarries the thread the nut runs on.
Product family
Trench support
Telescopic struts you set across an excavation to hold its sides.

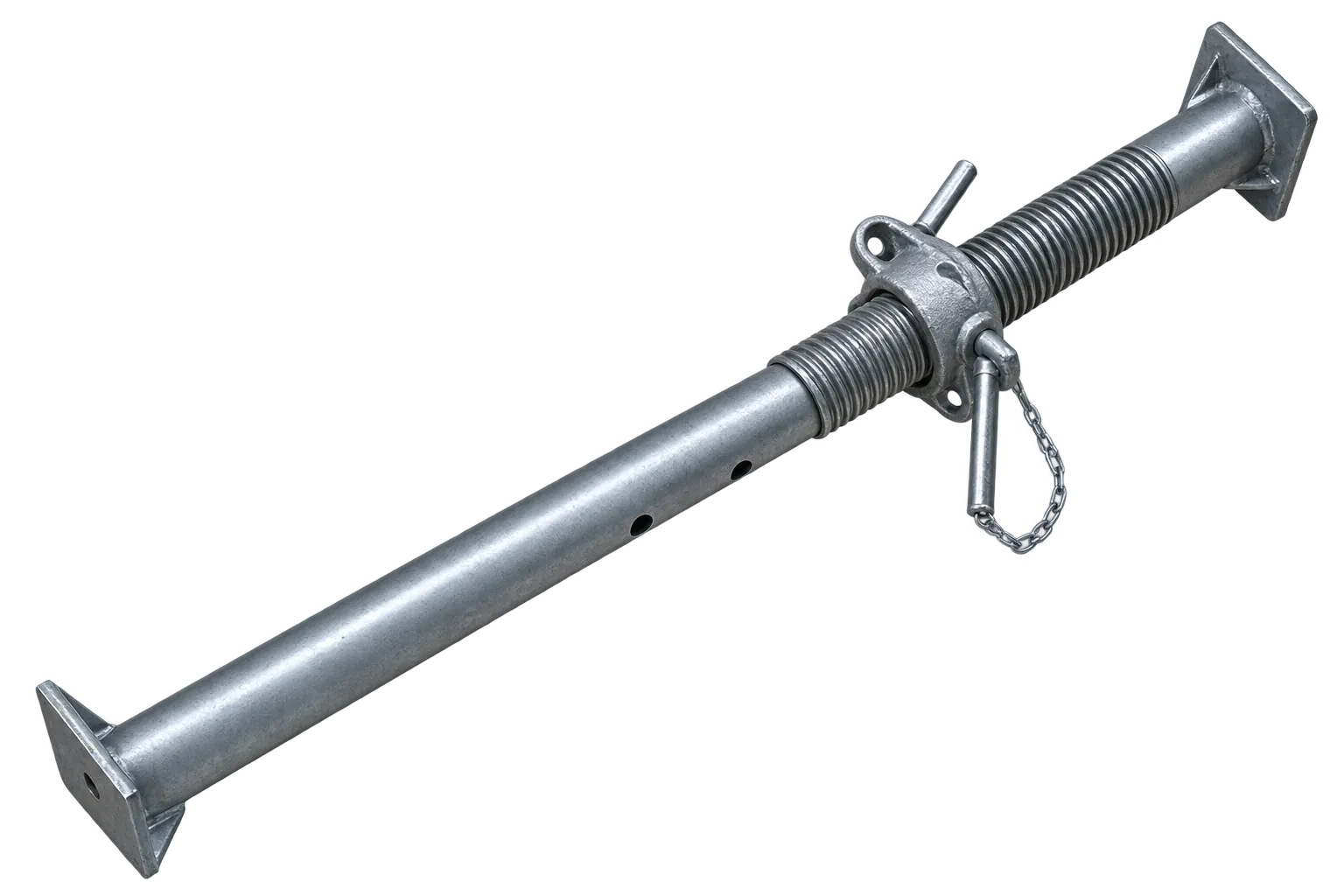

- Trench StrutsBraces walings or trench sheets apart.
Where it's used
Temporary works for every stage of a build.
Facades, towers and access
Building facades, plant rooms, tanks and stair towers all need safe access at height while the work goes on. System scaffold goes up fast in regular bays and takes a full working deck at each lift. Cuplock System, Planks and Screw Jack with Base Plate & Wing Nut cover it.
Slabs, beams and formwork
Wet concrete has to be carried until it can carry itself, and the slab above often needs back-propping while the next floor is poured. Props set to height under the formwork do that job, floor by floor. Props, Threaded Tube, Prop Nut and G Pin cover it.
Falsework and heavy shoring
Bridge decks, transfer slabs and high ceilings need taller, heavier support than a single prop can give. Towers built with adjustable jacks top and bottom carry the beams that hold the formwork. Hi-Load Screw Jack with Wing Nut, Screw Jack with Base Plate & Wing Nut and Cuplock System cover it.
Trenches and excavations
Drainage runs, utility trenches and pit excavations must be kept open while people work inside them. Struts set across the trench hold its sides back against the ground. Trench Struts and G Pin cover it.
Hire fleets and spare parts
Hire companies and contractors keep large fleets of props running, and pins go missing and nuts wear. Spare parts made to the same size series keep every prop in use. G Pin, Prop Nut and Threaded Tube cover it.
Scaffolding and shoring systems
Five systems these parts build.
CUPLOCK
Cuplock system scaffold
Standards carry cups every half meter, and each ledger and transom locks into a cup node with no loose fittings. Bays of 0.6 to 3.0 m go up in regular lifts on base jacks.
Jacks, Planks & Systems
Cuplock System
Diameter: 2 in (N.B.) / 48.3 mm (O.D.), 3.2 or 4.0 mm wall · Length: 3-12 ft / 1-4 m; verticals in 0.5 m steps
SpecificationsJacks, Planks & Systems
Screw Jack with Base Plate & Wing Nut
Diameter: 1-1/4, 1-1/2 in (N.B.) / 33.7, 38, 38.1 mm (O.D.); 26-48 mm to order · Length: 24-36 in / 600-900 mm
SpecificationsJacks, Planks & Systems
Planks
Width: 9, 10, 12 in / 200-500 mm; 225, 230, 238, 250, 300, 320 mm common · Depth: 38, 50, 57, 63, 76 mm
SpecificationsWORKING DECKS
Working platforms and decks
Steel boards laid side by side across the transoms make the deck at each lift, on system scaffold or tube-and-fitting scaffold.
Jacks, Planks & Systems
Planks
Width: 9, 10, 12 in / 200-500 mm; 225, 230, 238, 250, 300, 320 mm common · Depth: 38, 50, 57, 63, 76 mm
SpecificationsJacks, Planks & Systems
Screw Jack with Base Plate & Wing Nut
Diameter: 1-1/4, 1-1/2 in (N.B.) / 33.7, 38, 38.1 mm (O.D.); 26-48 mm to order · Length: 24-36 in / 600-900 mm
SpecificationsPROPS
Adjustable steel props
An inner tube slides inside a threaded outer tube. A pin sets the height in steps, and a nut on the thread takes it the rest of the way.
Props & Trench Struts
Props
Size: #0, #1, #2, #3, #4 · Height: #0: 1.1-1.8 m; #1: 1.75-3.12 m; #2: 2.0-3.4 m; #3: 2.59-3.96 m; #4: 3.2-4.87 m
Specifications
Props & Trench Struts
Threaded Tube
Size: #0, #1, #2, #3, #4 · Tube: 60.3 mm O.D., 3.6 mm wall
Specifications
Props & Trench Struts
Prop Nut
Size: #0, #1, #2, #3, #4 · Thread: 4 TPI, to suit 60.3 mm threaded tubes
SpecificationsFALSEWORK
Falsework and shoring towers
Towers stand on base jacks and carry beams in U-heads or fork heads at the top, so the formwork sits at exactly the right level.
Jacks, Planks & Systems
Hi-Load Screw Jack with Wing Nut
Diameter: 1-1/4, 1-1/2 in (N.B.) / 48.3, 60.3 mm (O.D.) · Length: 30-120 in / 760 mm-3 m
SpecificationsJacks, Planks & Systems
Screw Jack with Base Plate & Wing Nut
Diameter: 1-1/4, 1-1/2 in (N.B.) / 33.7, 38, 38.1 mm (O.D.); 26-48 mm to order · Length: 24-36 in / 600-900 mm
SpecificationsJacks, Planks & Systems
Cuplock System
Diameter: 2 in (N.B.) / 48.3 mm (O.D.), 3.2 or 4.0 mm wall · Length: 3-12 ft / 1-4 m; verticals in 0.5 m steps
SpecificationsTRENCH SHORING
Trench shoring with struts
Struts span the excavation between walings or trench sheets on each side, extended to fit and locked with a pin and screw.
How GV sources this
From specification to delivery in four steps.
Specify
You define the specification, drawing, or standard. We work with your engineering requirements—ASTM grades, dimensions, finishes, certifications.
Qualify partner
We audit and certify manufacturing partners in India. First-article inspection and approval. Blanket orders or scheduled releases as you need.
Inspect & document
Pre-shipment inspection and third-party verification on request. Mill test reports, coating certificates, dimensional reports—documentation packs in every container.
Deliver to US site
Consolidated shipments to US ports and job sites. Landed-cost pricing in USD. Single point of contact in Katy, Texas for order management and support.
Questions answered
Common questions about scaffolding and shoring parts.
What do prop sizes 0 to 4 mean?
Sizes 0 to 4 are a standard series of adjustable steel props, each covering a band of heights. Size 0 runs from about 1.1 to 1.8 m and size 4 from about 3.2 to 4.87 m, with sizes 1, 2 and 3 in between. GV supplies props, pins, nuts and threaded tubes to this series to support US contractors and hire equipment fleets.
What does the G pin do on a prop?
The G pin passes through a hole in the prop's inner tube and rests on the prop nut, which sets the coarse height. Its hooked shape keeps it on the prop between uses. The nut is then turned on the threaded tube to bring the prop to its final height.
What is the difference between a base jack and a hi-load screw jack?
A base jack sits under each scaffold standard on a square base plate and levels the scaffold on uneven ground. A hi-load screw jack has a larger stem and usually a U-head or fork head, and it carries beams at the top of a falsework or shoring tower.
Which cuplock parts does GV supply?
GV sources cuplock standards with top and bottom cups every 0.5 m, horizontal ledgers and transoms, base jacks, heavy U-head jacks and steel planks for the decks. The tube is 48.3 mm outside diameter with a 3.2 or 4.0 mm wall, sourced from qualified partners and managed for US job sites.
Which standards do scaffolding and shoring buyers specify?
US contractors typically reference OSHA 1926 Subpart L for scaffolds and Subpart P for trench shoring. GV sources each part to the size series and standard your specification requires.
How are trench struts sized?
Trench struts are sized by the width of trench they span, using the same 0 to 4 numbering as props. A size 0 strut closes to about 0.32 m and a size 3 opens to about 1.73 m, and each size adjusts with a pin and screw between its end plates.
