Product family

Vineyard & Orchard Trellising

Every crop wants its canopy held in a particular shape, and that shape is what your trellis is for. GV sources the steel you need—line posts and cross arms for the frame, earth anchors and stop plates to hold it in the ground, U bolts to pin it together, and stakes and rods to carry young plants through establishment. Whether you are training wine grapes vertically, spreading table grapes wide, or holding kiwifruit overhead, the same handful of parts in different arrangements gets the job done.

Explore vineyard & orchard systems ↗
Vineyard & Orchard Trellising steel components

Product families

Eleven products across six families.

Organized by purpose. Know a component by another name? Find it in the trade-names list.

Rolled Edge Vertical Line Post

Product family

Vertical posts

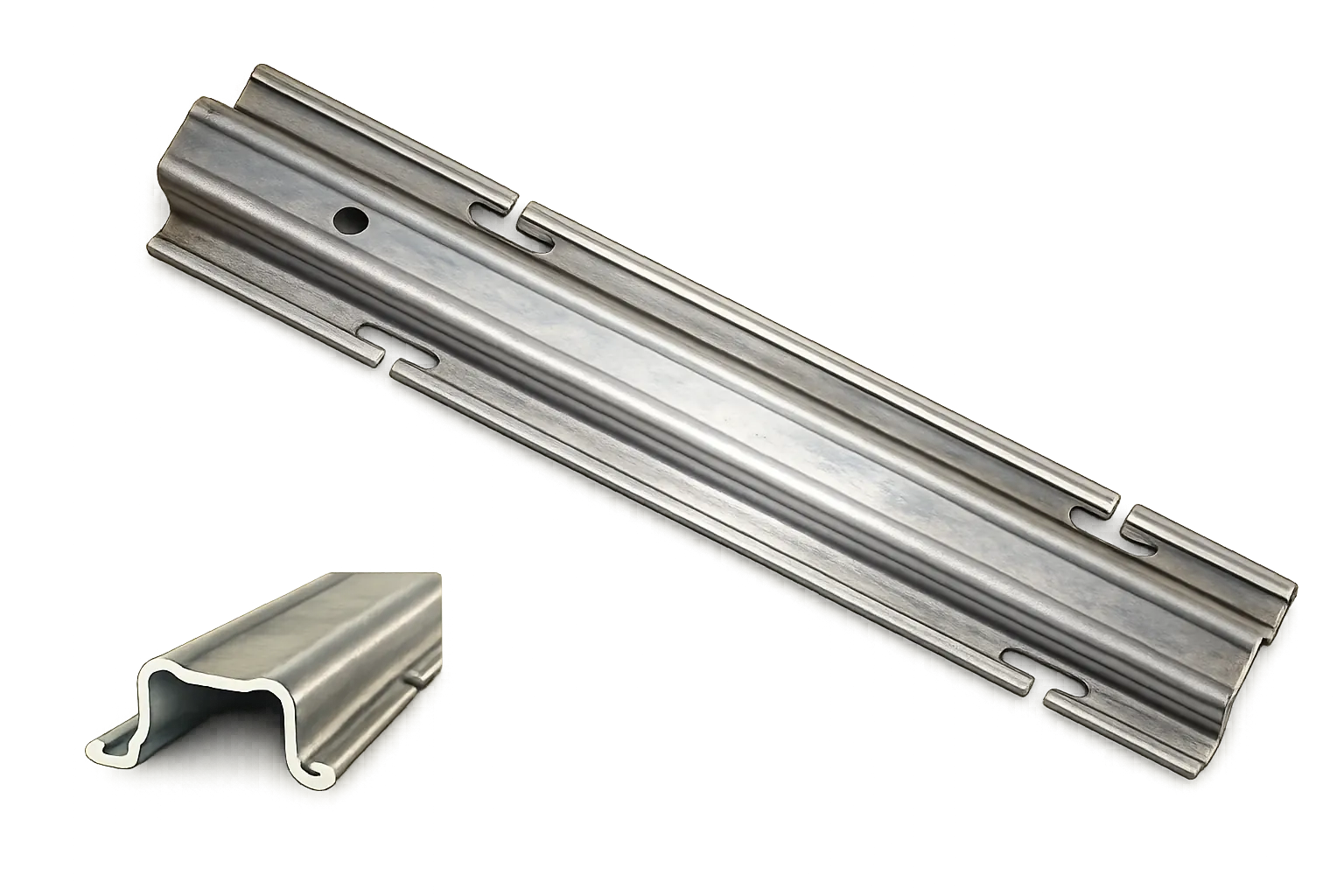

Rolled Edge and Flat-Edge Vertical Line Posts carry the wire framework down every row you plant. The rolled edge stiffens the post, giving it more strength and bend resistance under a heavy canopy. The flat edge gives you a clean, consistent face for wire and clip placement. End posts use a heavier gauge, because they take the tension of the whole row.

Cross Arms

Product family

Cross arms

Cross Arms mount at the top of a post and spread your canopy wide. They turn a single-wire row into a T-trellis, a DOV raisin system, a kiwifruit T-bar, or a caneberry configuration. U Bolts clamp the arm in place and carry the pull of fruit, foliage, and wire tension along its length.

  • Cross ArmsHorizontal bracket that turns a single post into a multi-wire canopy support.
Grape Stakes

Product family

Establishment support

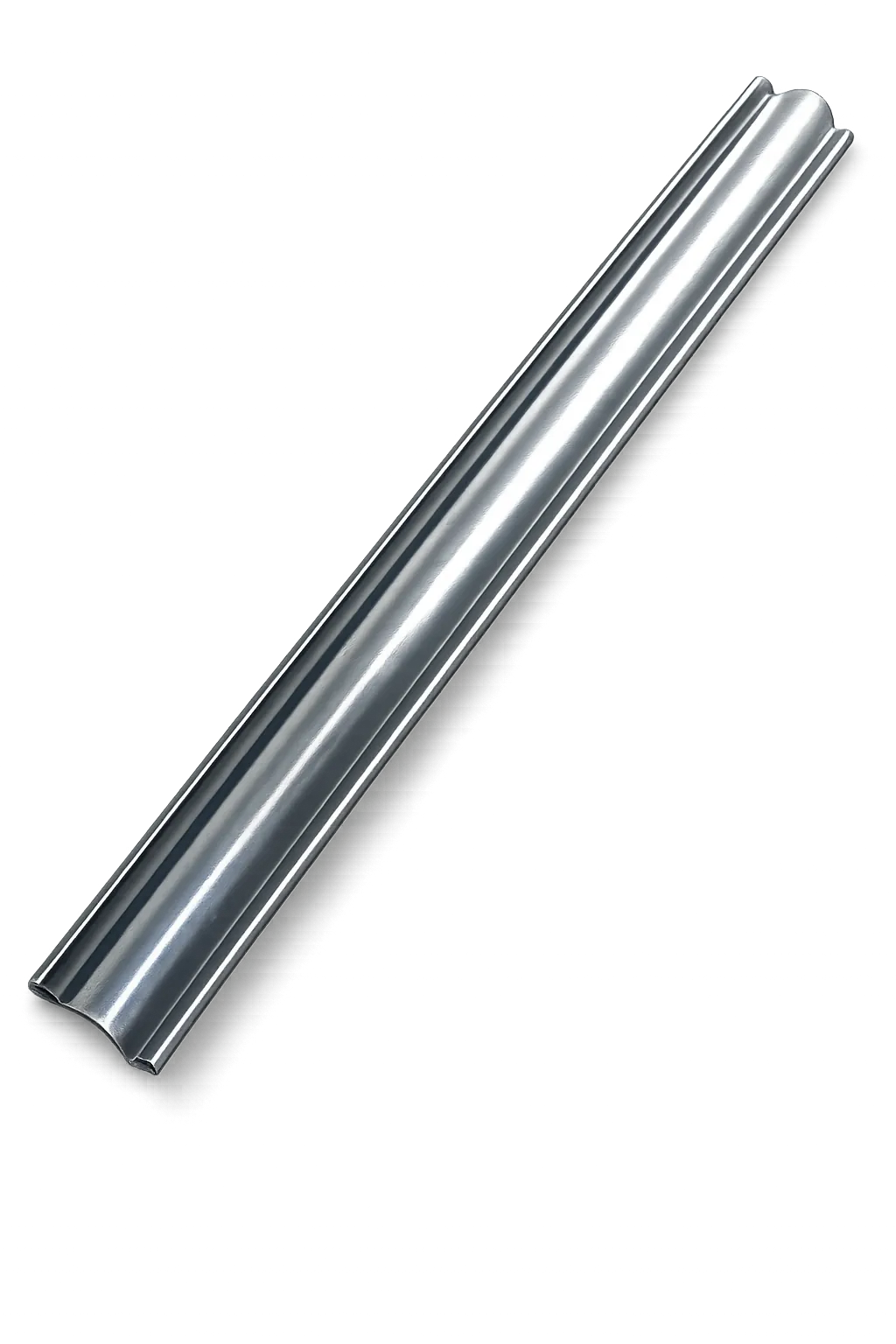

Grape Stakes hold your young vines upright through cordon training, then come out once each vine stands on its own. Pencil Rods do similar work during establishment, later guiding branches in espalier rows. Cut Rebar covers the same ground on a budget, for training frames and temporary bracing.

  • Grape StakesDriven beside the young vine for temporary support; removed once cordon training is complete.
  • Pencil RodTraining rod for young-vine guidance, and for branch guidance in espalier systems.
  • Cut RebarCommodity reinforcing bar for budget or temporary training frames and bracing.
Earth Anchor / Auger (Straight / Spiral)

Product family

Ground anchors

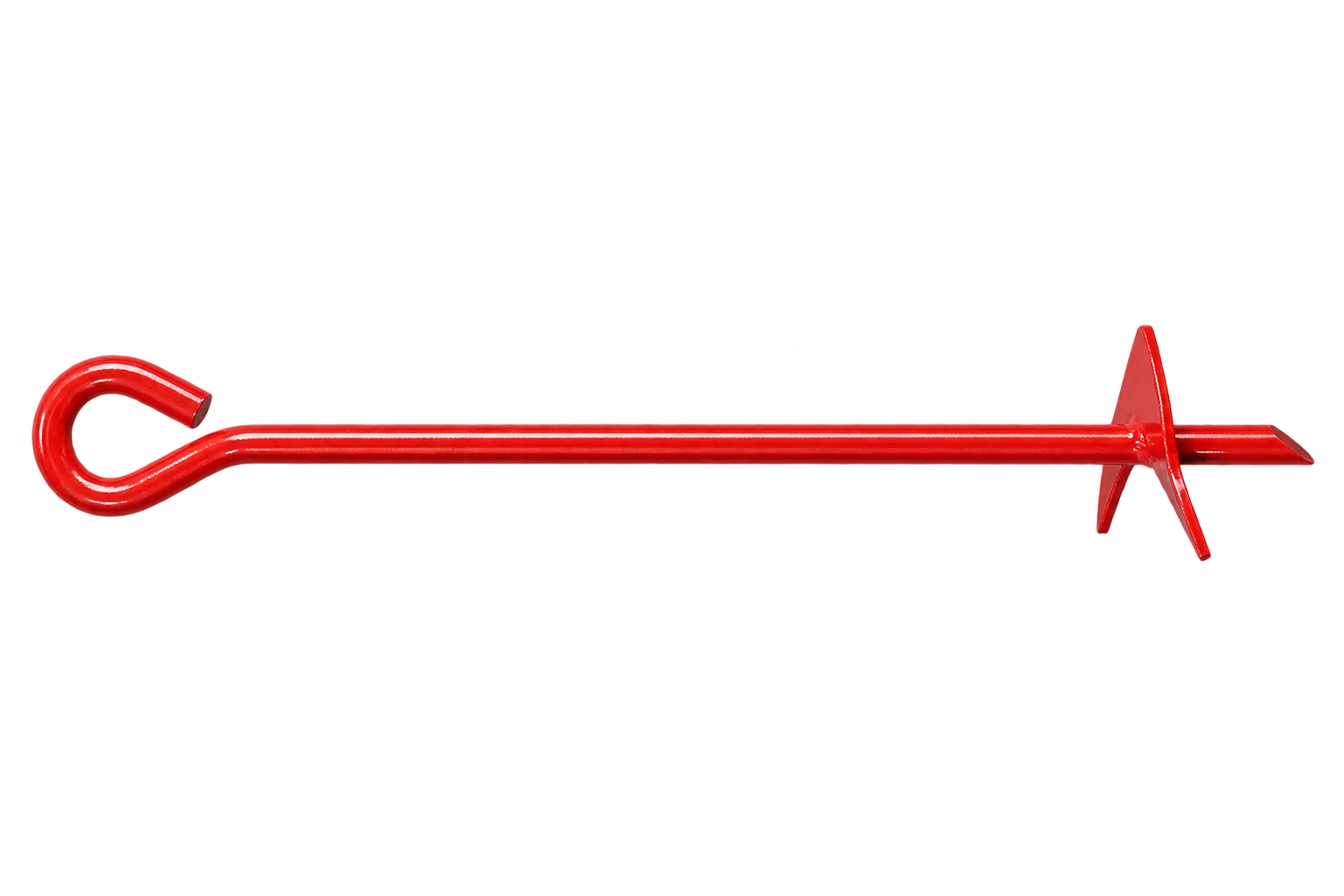

Earth Anchors screw into the ground behind your end posts and hold them against the tension every wire in the row pulls back. Spiral anchors suit loam and clay. Straight-blade anchors bite into sand. Stop Plates solve a different problem, spreading the bearing load so a post doesn't sink into soft ground.

V #3 Posts

Product family

Angled posts

V #3 Posts are GV's sourced design for angled-V trellis systems, Tatura fruit-wall orchards among them. Your cordons train against these posts at an angle rather than standing vertical, concentrating fruit in a narrow, light-filled wall.

  • V #3 PostsAngled-post design for V-trellis and Tatura-style orchard systems.
U Bolt

Product family

Fasteners and caps

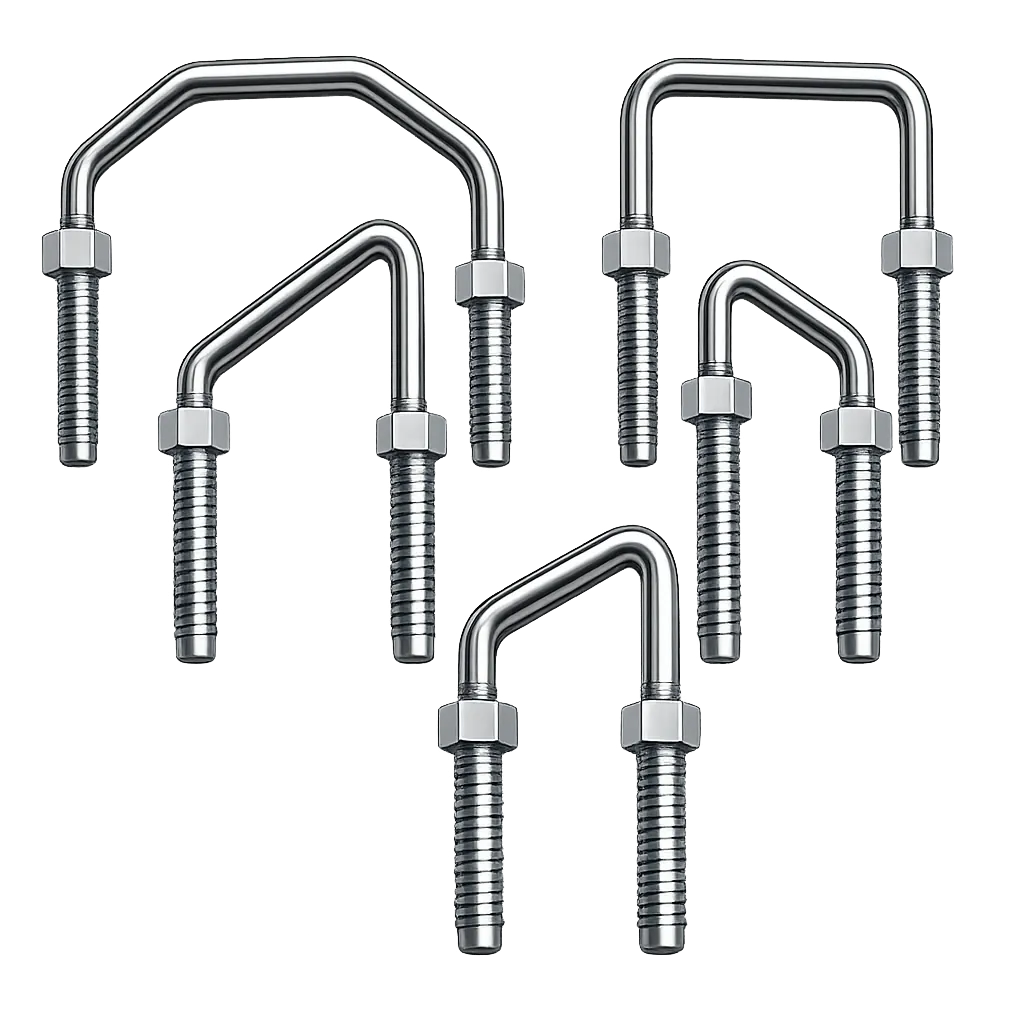

U Bolts clamp Cross Arms to posts and secure your wires at every attachment point, across every system in the range. T Post Caps do a different job, sealing the post top against water so corrosion doesn't start from the inside. That matters most in wet or coastal ground.

  • U BoltU-shaped fastener that clamps Cross Arms to posts and secures wires; used across every system.
  • T Post CapPost-top cap that keeps water out and protects against internal corrosion; optional.

Crops and challenges

Components for the row you're building.

Wine grapes

Cool-climate wine grapes live or die on light and airflow in the fruiting zone, and on rows a harvester can run clean. That means a narrow vertical canopy, and it asks for line posts at consistent spacing, wires that hold tension all season, and end posts anchored hard enough that the row never creeps. Rolled Edge Vertical Line Posts, U Bolts and Earth Anchors from GV cover it.

Related components
Wine grapesCanopy controlPremium production

Table grapes and raisins

Table grapes and dried-on-vine raisins want a wide canopy and one clear picking line. Spreading fruit that wide puts a cross arm on top of every post, and it asks a lot of the row ends, which now carry the weight of a fully loaded canopy. GV supplies Cross Arms, U Bolts and Earth Anchors that handle that work.

Related components
Table grapesRaisinsMulti-wire support

Apples, pears and stone fruit

High-density orchard rows are unforgiving about geometry. Trees go in tight, carry fruit for decades, and one post that drifts or sinks pulls the whole fruit wall out of line with it. Close-spaced line posts hold the frame. V #3 Posts handle angled-V layouts like Tatura. Pencil Rods guide branches while the trees train, and Stop Plates keep posts from settling into soft ground. GV delivers all of it.

Related components
ApplesHigh-densityDwarf trees

Kiwifruit, caneberries and berries

These crops load a structure in very different ways. A mature kiwifruit vine is heavy, and all that weight sits overhead, so posts and cross arms size up accordingly. Caneberries need several wire heights and tighter spacing to keep canes in hand and pickers moving. Young plants of any of them need holding upright first—Grape Stakes through cordon training, Pencil Rods for branch work. GV sources the full range.

Related components
KiwifruitCaneberriesSpecialty crops

Difficult ground

Soft ground, a high water table or a hard frost will move your posts, and a moved post is a slack row. Earth Anchors take the pull at the row ends, spiral in loam and clay, straight-blade where the soil turns sandy. Stop Plates work on the other axis, spreading the post's own load so it stays at the height you set it. For temporary rows, Cut Rebar braces cheaply. GV has the solution for whatever the ground throws at you.

Related components
Soft soilWet conditionsRow stability

Trellis systems

VERTICAL SHOOT POSITIONING

VSP for wine grapes

VSP puts the whole canopy in one vertical plane. Shoots run straight up from a fruiting wire and are held there by catch wires above it. Line posts spaced down the row carry that wire array, and U Bolts fasten each wire so it holds its tension rather than sliding under load. The geometry only holds if the row ends hold, which is where Earth Anchors come in: they take the accumulated pull of every wire on the row and put it into the ground.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

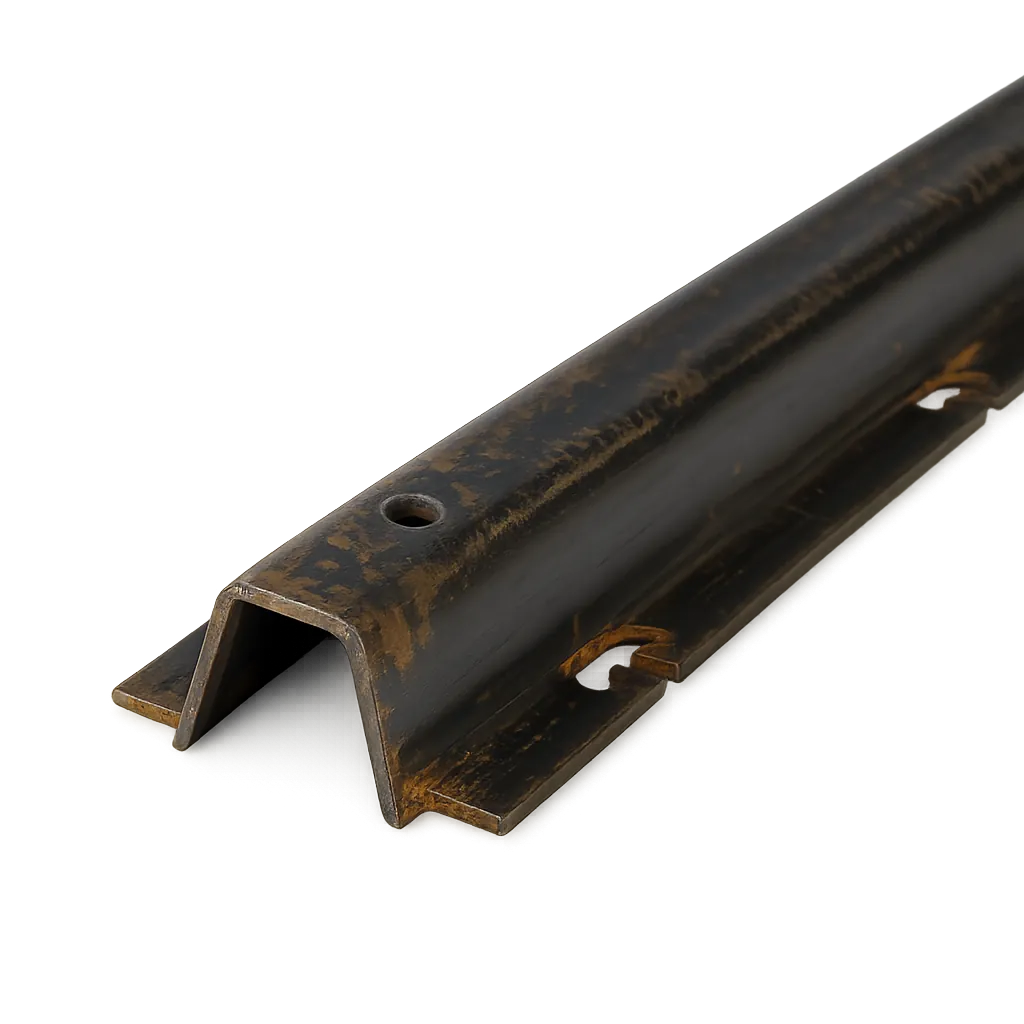

Flat-Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Stakes & Accessories

Earth Anchor / Auger (Straight / Spiral)

Rod diameter: 1/2-1 in / 12-25 mm · Helix diameter: 4-10 in / 100-250 mm

Specifications
3 featured productsSystem detail

T-TRELLIS FOR TABLE GRAPES

T-trellis table grape systems

A Cross Arm at the top of each post turns one vertical plane into two. Bilateral cordons train out along the arm, and wires clipped at staggered heights carry the fruiting zone on either side. The arm is what sets canopy width, so its length is the number that decides how the row works. U Bolts clamp the arm to the post, and Earth Anchors hold the end posts against a fully loaded arm through harvest.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Flat-Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Cross Arms

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 6-72 in / 150-1800 mm

Specifications
3 featured productsSystem detail

DOV RAISIN SYSTEMS

Dried-on-vine raisin trellis

DOV builds an open gable: posts angled into a V, with Cross Arms forming the top of each side. Cordons train up both faces, and the gap down the middle is what lets air move through the canopy well enough to dry fruit where it hangs. The V spreads load outward instead of straight back down the row, but the end posts still carry cane weight and drying fruit until the machine comes through. Earth Anchors hold them for that whole stretch.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Cross Arms

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 6-72 in / 150-1800 mm

Specifications
Stakes & Accessories

Earth Anchor / Auger (Straight / Spiral)

Rod diameter: 1/2-1 in / 12-25 mm · Helix diameter: 4-10 in / 100-250 mm

Specifications
3 featured productsSystem detail

KIWIFRUIT PERGOLA SYSTEMS

Kiwifruit T-bar and pergola support

Kiwifruit gets built two ways. A T-bar puts a single Cross Arm at the post top and holds the canopy at one working height, which keeps access simple. A pergola goes fully overhead on stacked wire tiers, spreading the load across more structure and carrying more fruiting wood. Both ask more of the posts than a vertical row does, because the weight sits out over the row rather than beside it. Earth Anchors keep the row ends from walking under that load.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Flat-Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Cross Arms

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 6-72 in / 150-1800 mm

Specifications
3 featured productsSystem detail

TATURA V-TRELLIS

Tatura apple orchard systems

Tatura leans the posts. Set at roughly 22.5 degrees, V #3 Posts form a narrow fruit wall with high sides, which fits more canopy into a tighter row and keeps light on all of it. Leaning the posts also changes where the load goes: an angled post pushes sideways as much as it pulls back, so bracing at the row ends matters more here than in a vertical system. Stop Plates keep the bases from settling, and Earth Anchors take the angled pull.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Stakes & Accessories

V #3 Posts

Finish: Plain, hot dip galvanized

Specifications
Stakes & Accessories

Earth Anchor / Auger (Straight / Spiral)

Rod diameter: 1/2-1 in / 12-25 mm · Helix diameter: 4-10 in / 100-250 mm

Specifications
3 featured productsSystem detail

CANEBERRY TRELLIS SYSTEMS

Caneberry (raspberry, blackberry) systems

Caneberries take one of three shapes. An I-trellis keeps canes upright in a single narrow line. A V-trellis splits them onto two faces for more air and light between the canes. A T-trellis runs Cross Arms out wide so canes lie along horizontal wires and a harvester can pass straight down the row. Line posts and Earth Anchors are the same in all three; the configuration follows your cane type and how you plan to pick.

Posts & trellising

Rolled Edge Vertical Line Post

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 7-18 ft / 2-6 m

Specifications
Posts & trellising

Cross Arms

Thickness: 12 G, 13 G, 14 G / 2.5, 2.3, 2.0 mm · Length: 6-72 in / 150-1800 mm

Specifications
Stakes & Accessories

Earth Anchor / Auger (Straight / Spiral)

Rod diameter: 1/2-1 in / 12-25 mm · Helix diameter: 4-10 in / 100-250 mm

Specifications
3 featured productsSystem detail

How GV sources this

From specification to delivery in four steps.

Specify

You define the specification, drawing, or standard. We work with your engineering requirements—ASTM grades, dimensions, finishes, certifications.

Qualify partner

We audit and certify manufacturing partners in India. First-article inspection and approval. Blanket orders or scheduled releases as you need.

Inspect & document

Pre-shipment inspection and third-party verification on request. Mill test reports, coating certificates, dimensional reports—documentation packs in every container.

Deliver to US site

Consolidated shipments to US ports and job sites. Landed-cost pricing in USD. Single point of contact in Katy, Texas for order management and support.

Questions answered

Common questions about vineyard and orchard rows.

What's the practical difference between rolled-edge and flat-edge line posts?
Rolled-edge posts have a continuous fold that stiffens the cross-section for more strength and bend resistance under row tension. Flat-edge posts offer a clean face for consistent wire-clip bearing and uniform wire heights. Both fit every trellis system, so the choice is whether you want the extra stiffness or the flat face for wire work.
How long should a cross arm be for a multi-wire trellis?
Cross arm length determines canopy width and wire spacing. Table grape T-trellis systems typically run 4 to 6 feet to position bilateral cordons. GV supplies cross arms from 6 to 72 inches, supporting table grapes, DOV open-gable systems, kiwifruit T-bar and pergola. Specify length based on your intended canopy width and wire positions.
Which anchor type suits which soil condition?
Earth anchors come in spiral and straight-blade designs. Spiral anchors suit loam and clay soils, where the helical blade screws down and grips the soil. Straight-blade anchors work in sandy soils where the blade bites into loose material. Choose spiral in clay-heavy ground, straight-blade where sand predominates. Both hold end posts against cumulative row tension.
What gauge or length of post suits a given trellis system?
Line post gauge and height depend on row length, canopy weight, and wire tension. GV supplies 12, 13, and 14 gauge in 7 to 18 foot heights. Wine grape VSP and table-grape T-trellis typically use 13 to 14 gauge at 16 to 20 foot spacing. Heavier gauges suit high-tension or end posts. Taller posts support overhead systems like kiwifruit pergola or DOV.
When are grape stakes needed versus a full line post?
Grape stakes are temporary supports for young vines during establishment, holding upright growth while the vine forms its cordon. They are small-diameter and removed once the vine stands alone. Line posts are permanent structural members for the mature trellis. Use stakes during establishment; switch to permanent posts once cordon training is complete.
What holds an end post against the tension that every wire in the row pulls back?
Earth anchors screwed into the ground behind end posts take the accumulated pull of every wire in the row and transfer that tension into the soil. The anchor grips the ground—spiral in clay loam, straight blade in sand—and holds the end post rigid against cumulative wire load. Without end-post anchoring, row tension would drag the posts out of line, slackening the trellis.
