Product family
Cold-Formed Profiles & Sections
Steel buildings, warehouses and plant rooms rely on light roll-formed sections as much as on their main frames. GV sources C and Z purlins for roofs and walls, sag rods for purlin bracing, and strut channel with nuts and fittings for services and equipment—all made to your specification for depth, thickness, steel grade and coating.
Explore cold-formed systems ↗
Three families
Five products for roofs, walls and services.
Organized by type. Know a product by another name? Find it in the trade-names list.
Product family
Purlin bracing
Threaded rods that tie purlins and girts together between the frames.
- Sag RodsStraight or cranked rods with nuts and washers.
Product family
Strut framing
Roll-formed 41 mm channel and the fittings that turn it into supports and frames.
- Universal Strut Channel / ‘C’ Strut ChannelSlotted or plain channel in four depths.
- AccessoriesChannel nuts, brackets, plates and clamps.
Where it's used
Light steel for buildings and services.
Steel building roofs
Warehouses, factories and farm buildings carry their roof sheeting on purlins spanning between the main frames. Z purlins lapped over the rafters run continuous, and sag rods keep them straight while the sheets go on. Z Purlin, C Purlin and Sag Rods cover it.
Walls, cladding and openings
Wall cladding hangs on girts, or side rails, fixed across the columns, and every door and window needs a framed opening. The same C and Z sections do both jobs, hung from the eaves with sag rods. C Purlin, Z Purlin and Sag Rods cover it.
Pipe, duct and cable support
Mechanical and electrical contractors hang pipes, ducts and cable trays on strut channel trapezes and brackets. Channel nuts grip the lips anywhere along the slot, so supports go up without drilling or welding. Universal Strut Channel / 'C' Strut Channel and Accessories cover it.
Equipment frames and racks
Panels, plant, instruments and solar arrays on roofs are mounted on bolted strut frames and light cold-formed members. Slotted channel lets a frame be adjusted on site. Universal Strut Channel / 'C' Strut Channel, Accessories and C Purlin cover it.
Cold-formed systems
Four systems these sections build.
ROOFS
Roof purlin system
Z purlins lapped over the rafters and C purlins at the eaves carry the roof sheeting, with sag rods holding them straight between frames.
Purlins & Sag Rods

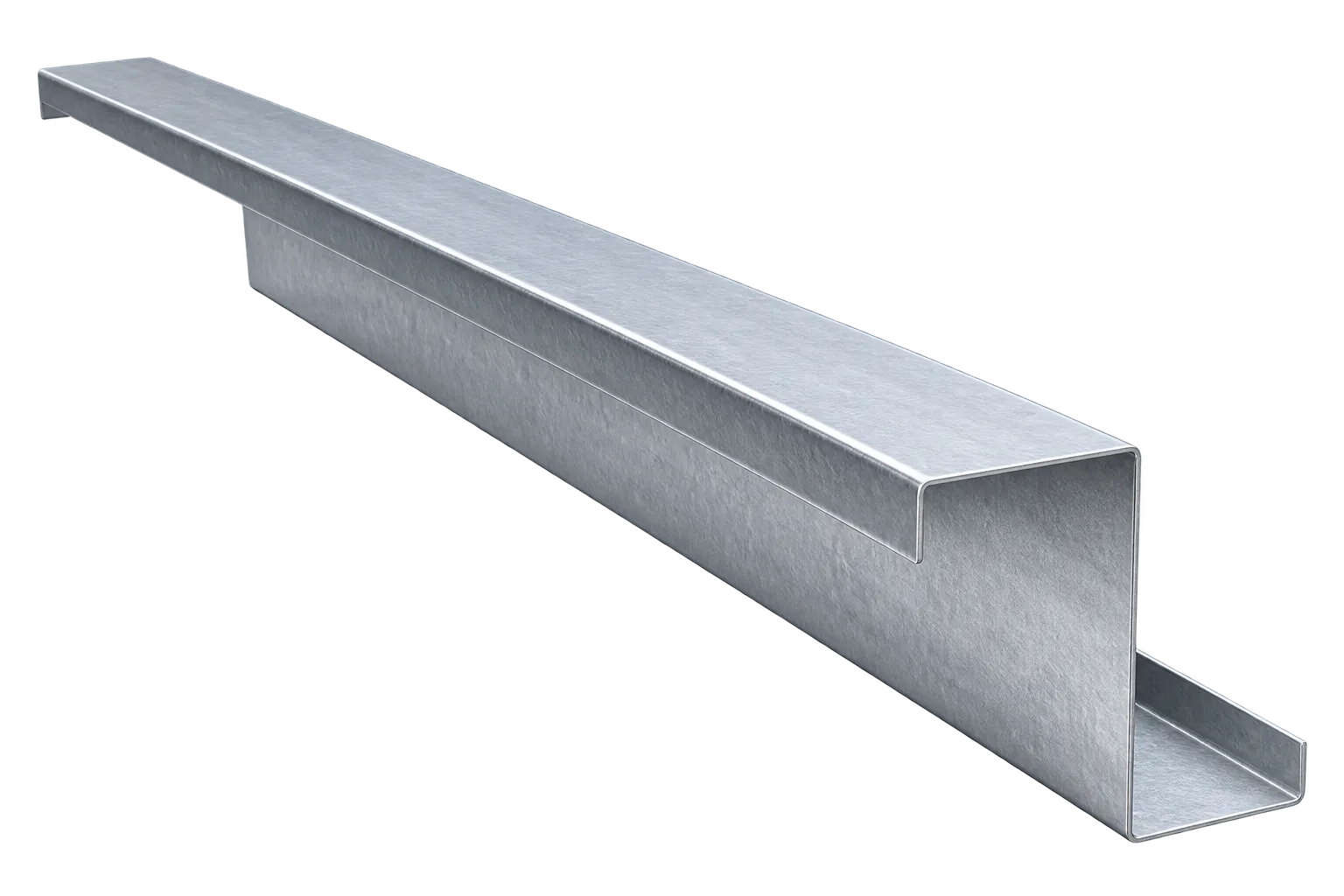

Z Purlin
Height (H): 4-14 in / 100-350 mm · Flange (B): 2.75-3 in / 60-90 mm
Specifications
Purlins & Sag Rods

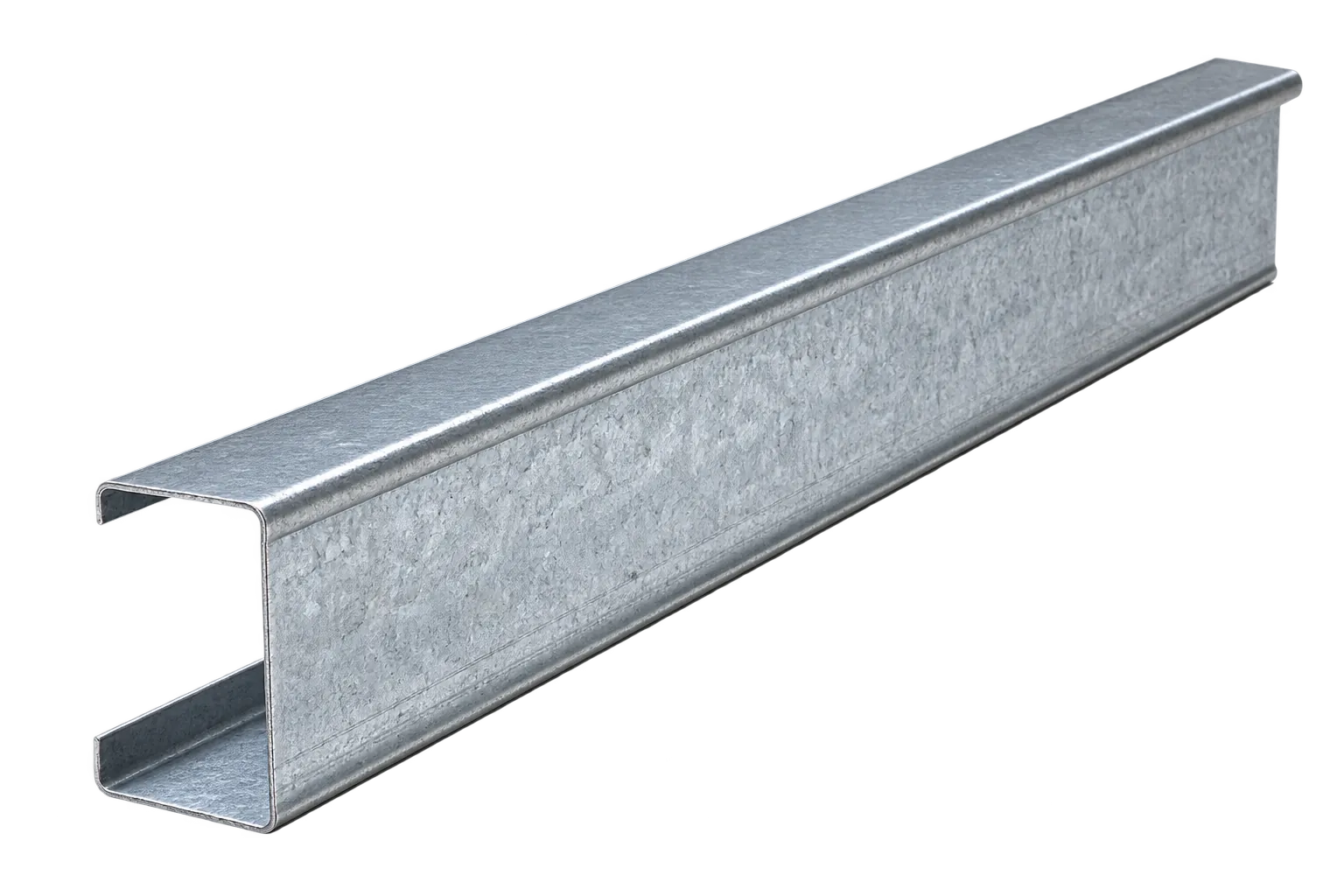

C Purlin
Height (H): 3-14 in / 75-300 mm · Flange (B): 2.35-3 in / 60-75 mm
SpecificationsPurlins & Sag Rods

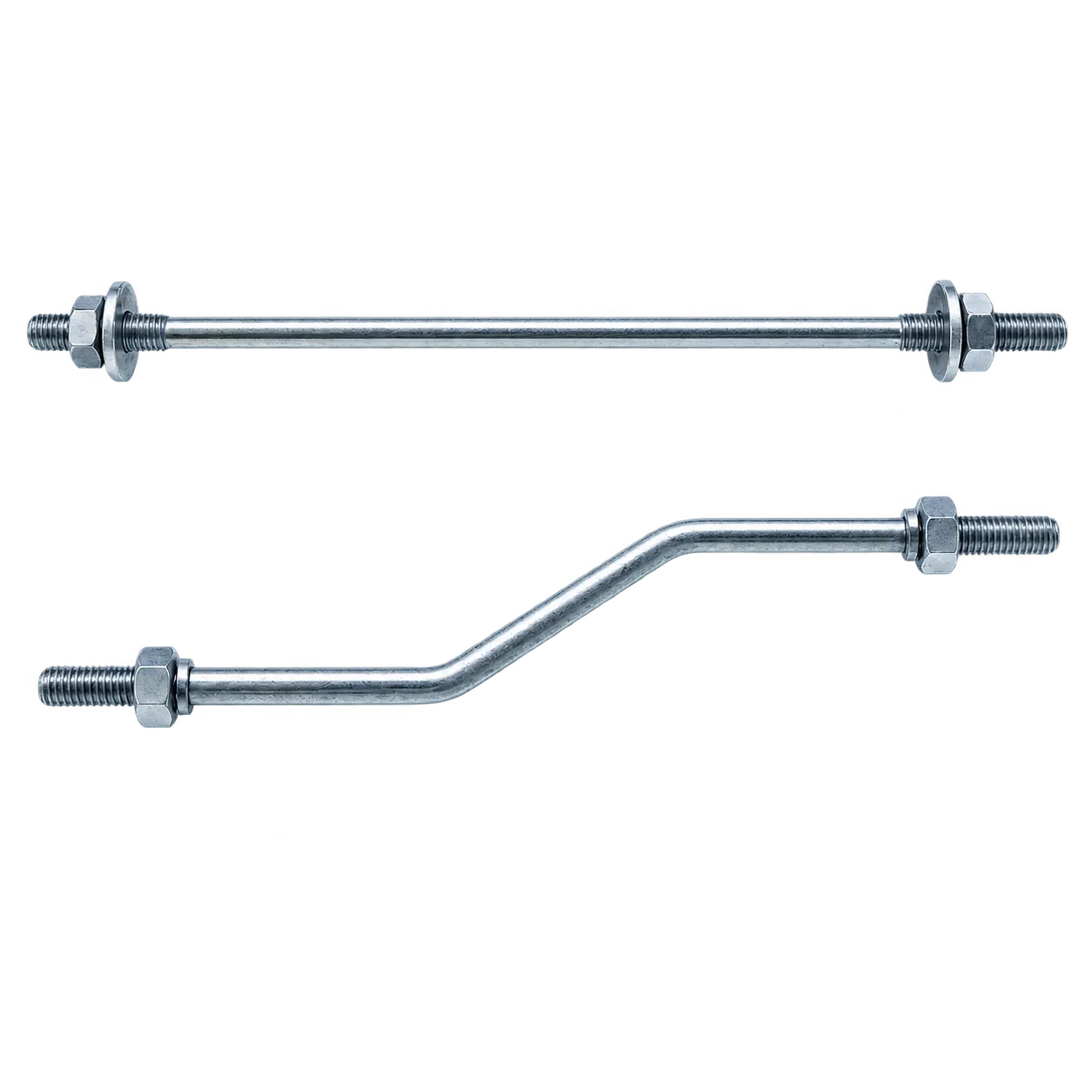

Sag Rods
Diameter: 1/2, 5/8 in / 12, 16 mm · Length: 3-10 ft / 900 mm-3 m
SpecificationsWALLS
Wall girt and side rail system
The same sections turned on their side carry the wall cladding across the columns and frame the openings.
Purlins & Sag Rods
C Purlin
Height (H): 3-14 in / 75-300 mm · Flange (B): 2.35-3 in / 60-75 mm
SpecificationsPurlins & Sag Rods
Z Purlin
Height (H): 4-14 in / 100-350 mm · Flange (B): 2.75-3 in / 60-90 mm
SpecificationsPurlins & Sag Rods
Sag Rods
Diameter: 1/2, 5/8 in / 12, 16 mm · Length: 3-10 ft / 900 mm-3 m
SpecificationsTRAPEZE
Strut trapeze hangers
A strut channel hung on two rods carries pipes, ducts and trays, each clamped to the channel with fittings that grip its lips.
Strut Channels & Accessories

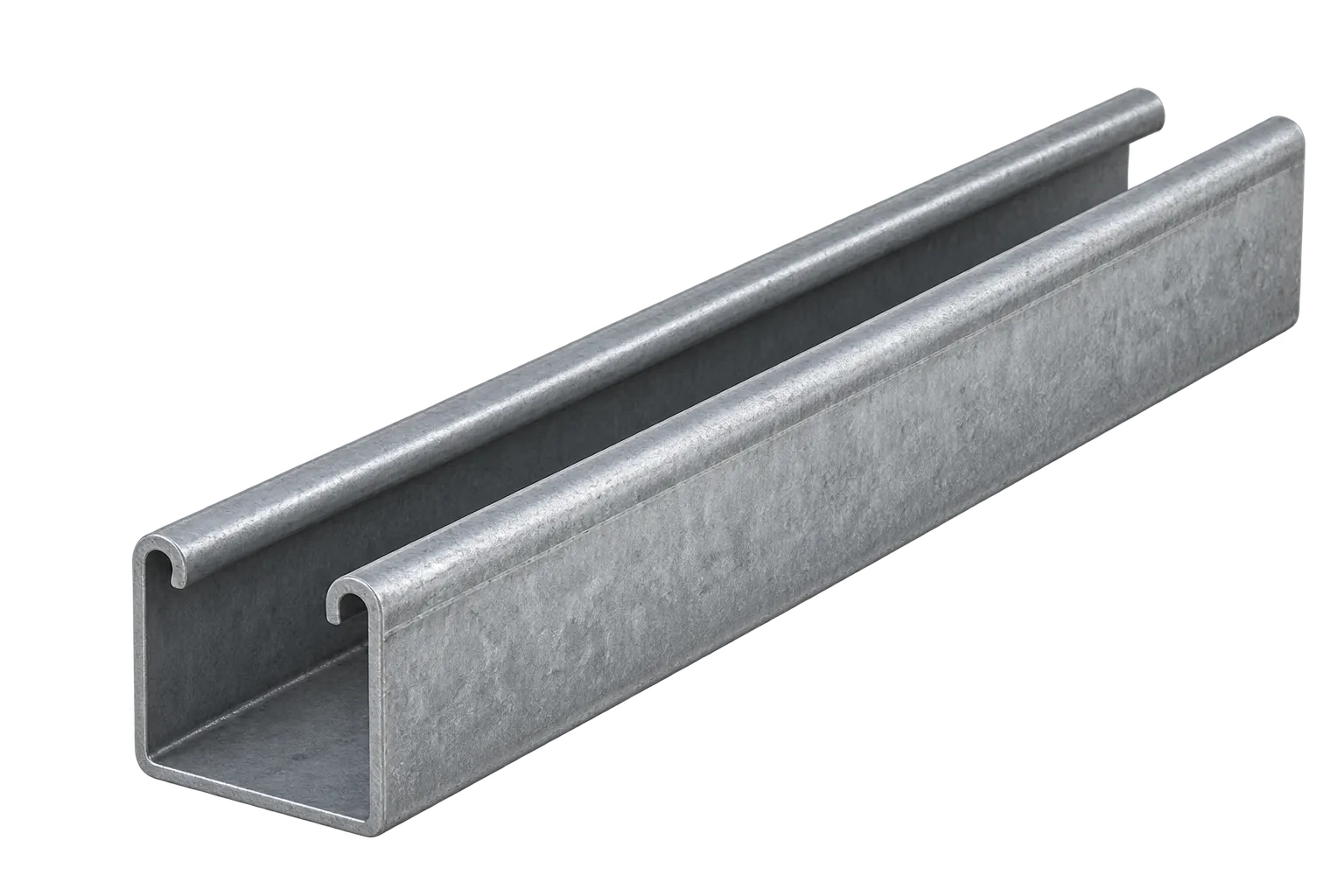

Universal Strut Channel / ‘C’ Strut Channel
Thickness: 12G 13G 14G 16G / 2.5 mm 2.3 mm 2.0 mm 1.5 mm · Size: 13/16" x 1-5/8" 1-5/8" x 1-5/8" 2-7/16" x 1-5/8" 3-1/4" x 1-5/8" / 21 mm x 41 mm 41 mm x 41 mm 61 mm x 41 mm 81 mm x 41 mm
Specifications
Strut Channels & Accessories

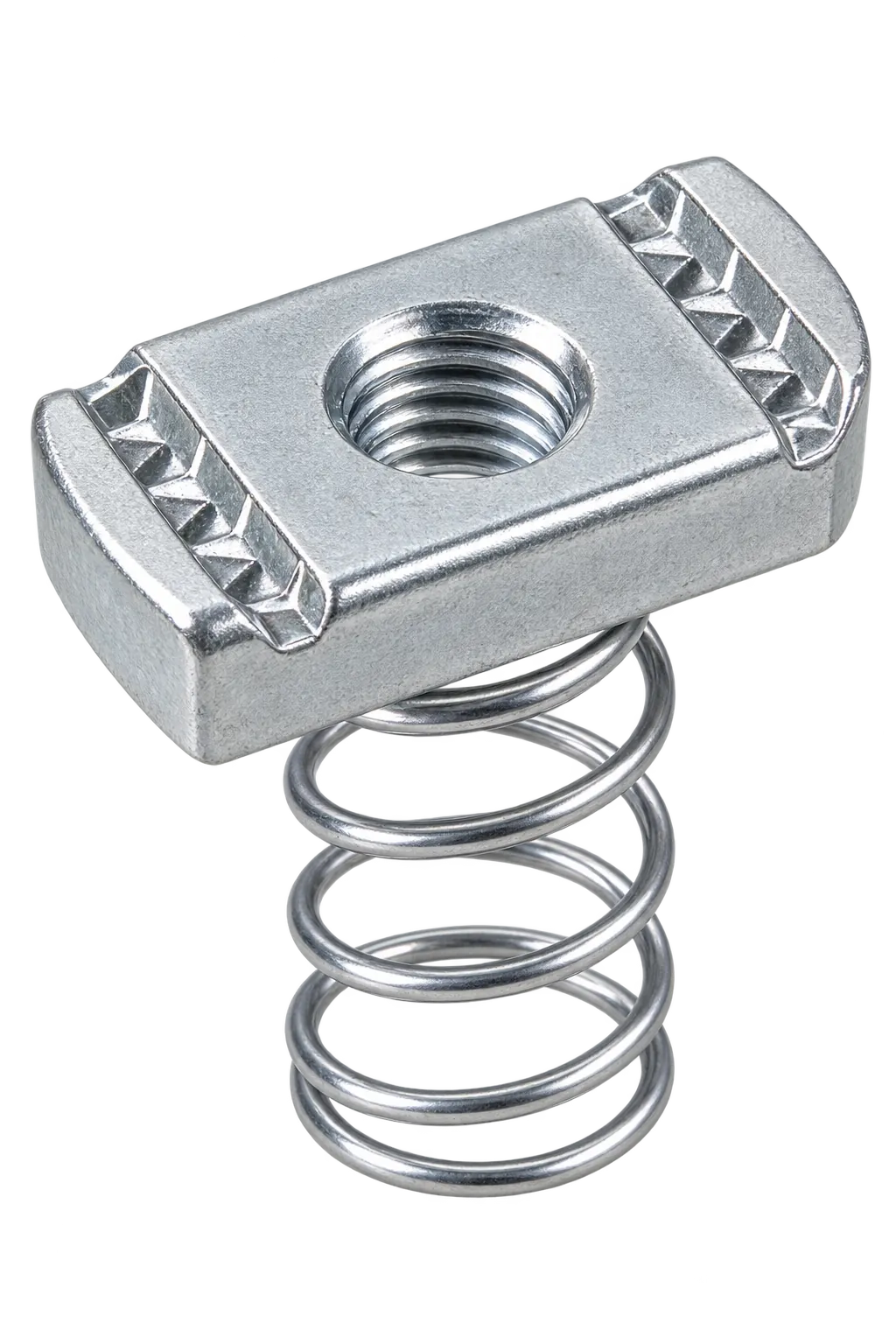

Accessories
Channel nuts: Spring nut, plain channel nut, toothed nut · Thread: 1/4-1/2 in / M6-M12
SpecificationsFRAMING
Strut framing for equipment and cable
Channel lengths bolted together with plates and brackets make posts, rails and stands for plant, panels and cable.
Strut Channels & Accessories
Universal Strut Channel / ‘C’ Strut Channel
Thickness: 12G 13G 14G 16G / 2.5 mm 2.3 mm 2.0 mm 1.5 mm · Size: 13/16" x 1-5/8" 1-5/8" x 1-5/8" 2-7/16" x 1-5/8" 3-1/4" x 1-5/8" / 21 mm x 41 mm 41 mm x 41 mm 61 mm x 41 mm 81 mm x 41 mm
SpecificationsStrut Channels & Accessories
Accessories
Channel nuts: Spring nut, plain channel nut, toothed nut · Thread: 1/4-1/2 in / M6-M12
SpecificationsHow GV sources this
From specification to delivery in four steps.
Specify
You define the specification, drawing, or standard. We work with your engineering requirements—ASTM grades, dimensions, finishes, certifications.
Qualify partner
We audit and certify manufacturing partners in India. First-article inspection and approval. Blanket orders or scheduled releases as you need.
Inspect & document
Pre-shipment inspection and third-party verification on request. Mill test reports, coating certificates, dimensional reports—documentation packs in every container.
Deliver to US site
Consolidated shipments to US ports and job sites. Landed-cost pricing in USD. Single point of contact in Katy, Texas for order management and support.
Questions answered
Common questions about purlins and strut.
When is a Z purlin used instead of a C purlin?
Z purlins nest into each other, so they can be lapped or sleeved over the rafters and run continuous across several bays. C purlins do not nest, so they suit single spans, eaves, openings and framing. Many buildings use both.
What purlin sizes does GV source?
C purlins from 3 to 14 in (75 to 300 mm) deep and Z purlins from 4 to 14 in (100 to 350 mm) deep, in 10G to 16G (1.3 to 3.15 mm) steel. Flange and lip sizes follow the buyer's section table.
Which steel grades and coatings are available for purlins?
GV sources purlins to your design standard: ASTM A653 in the US. Finish options include plain, galvanized to G90, Z275 or Z350, or with red oxide primer.
What do sag rods do?
Sag rods tie purlins or girts together between the main frames so they stay straight and upright under the sheeting. GV sources them in 1/2 in and 5/8 in (12 and 16 mm) diameter, 3 to 10 ft (900 mm to 3 m) long, straight or cranked, with nuts and washers.
What strut channel sizes are available?
The channel is 1-5/8 in (41 mm) wide in 13/16 in, 1-5/8 in, 2-7/16 in and 3-1/4 in (21, 41, 61 and 81 mm) depths, in 12G to 16G (2.5 to 1.5 mm) steel. It comes plain or slotted, in 10 and 20 ft (3 and 6 m) lengths.
Which channel nuts fit the strut?
Spring nuts, plain channel nuts and toothed nuts in 1/4 in to 1/2 in (M6 to M12) threads. The nut turns into the channel, and its grooves lock under the in-turned lips when the bolt is tightened.
