Product family
Hangers
The clamp around the pipe and the rod that hangs it from the structure.

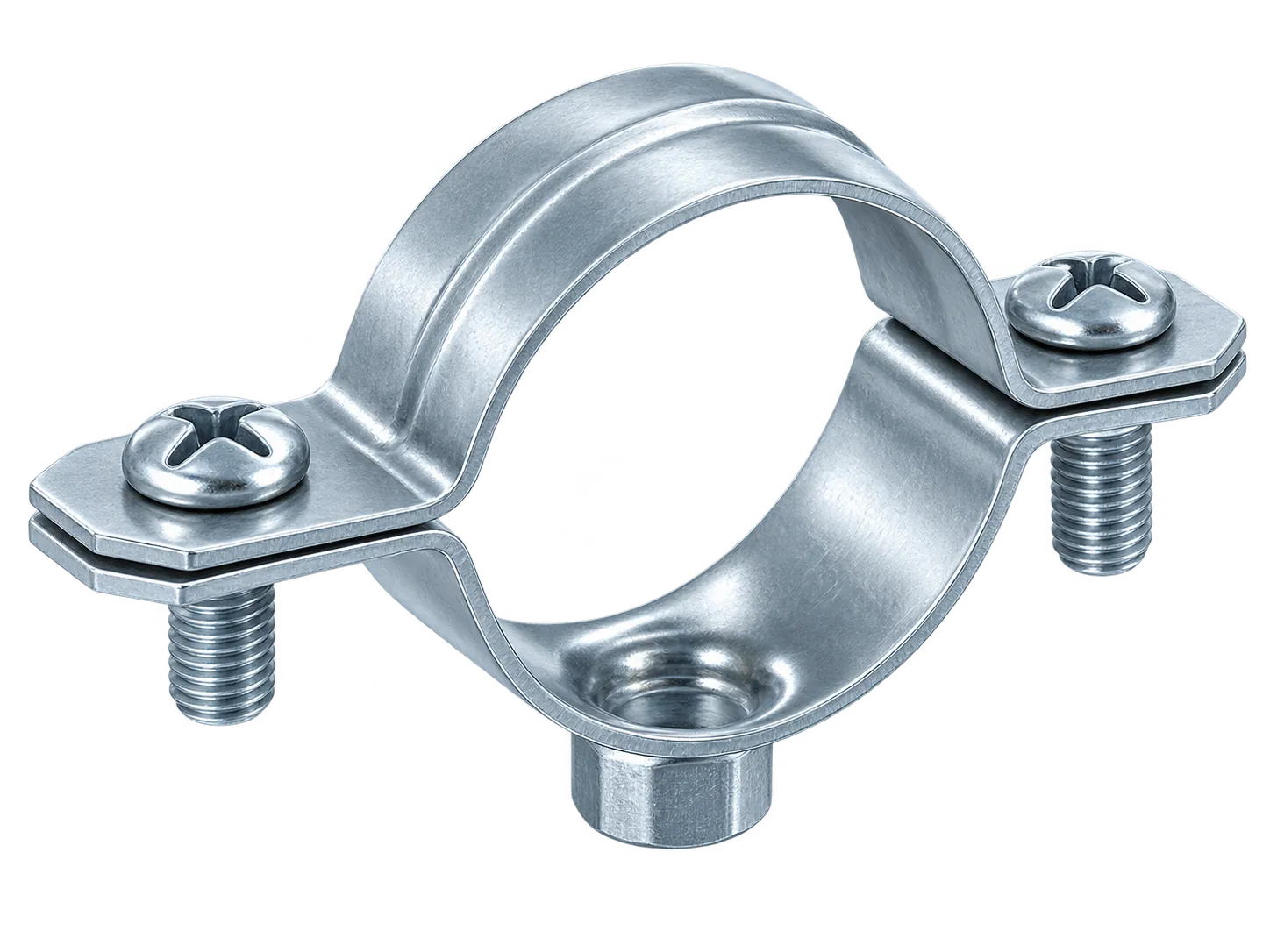

- Pipe ClampsTwo-piece clamp with a threaded boss for the rod.

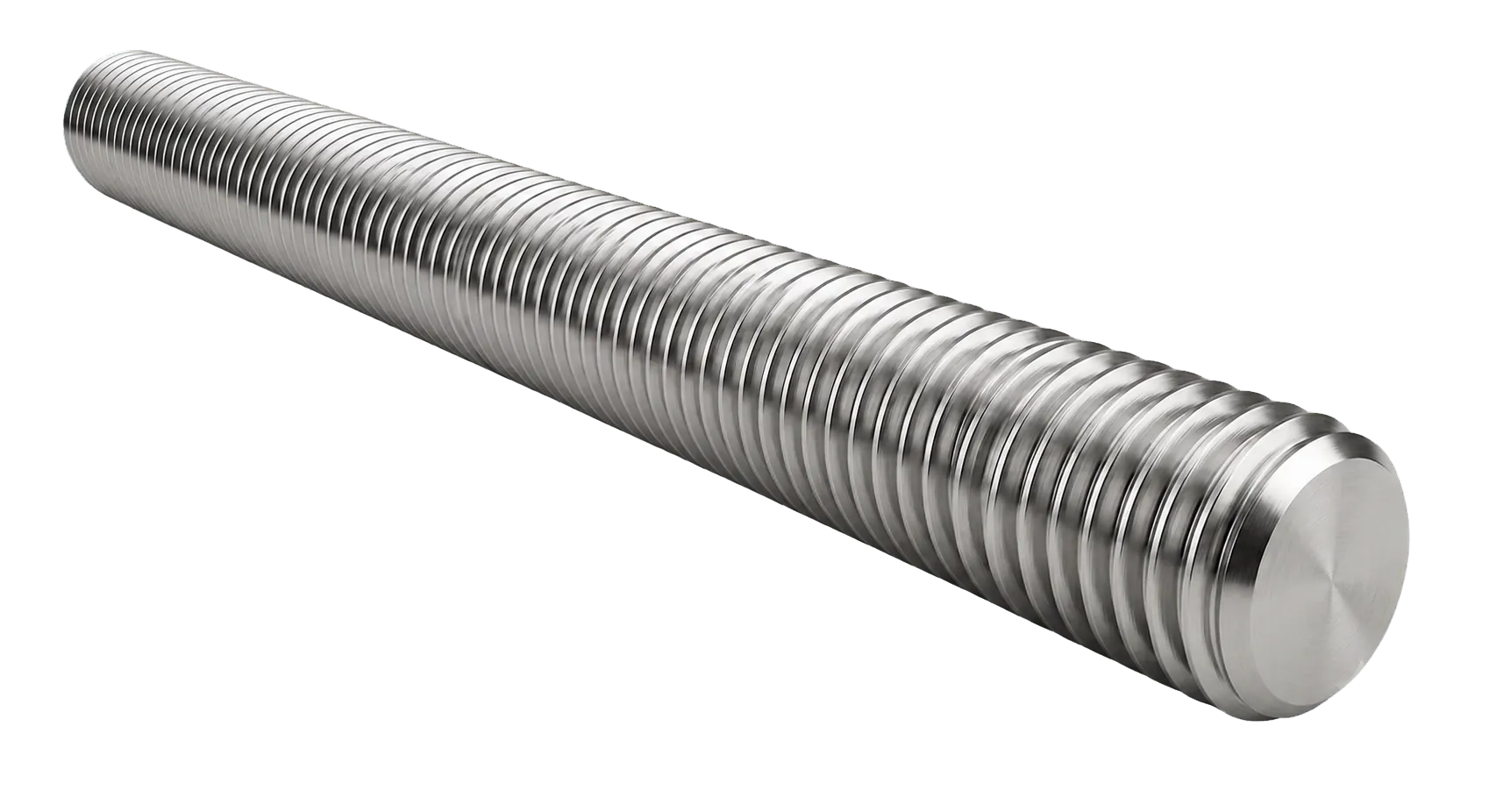

- Threaded Rods / BarsRod threaded full length, cut to the drop.
Product family
Pipe Support Systems
Pipework in a building or plant has to be hung, joined and drained. GV supplies pipe clamps and the threaded rod they hang from, stainless steel collars for flanged joints, and sump receivers that seat roof drains in the metal deck. Each part is sourced to the pipe size, thread, grade and finish your specification calls for.
Enquire about this range
Three families
Four products for pipework.
Organized by type. Know a product by another name? Find it in the trade-names list.
Product family
Flange collars
Stainless collars welded to the pipe end so a loose flange can make the joint.

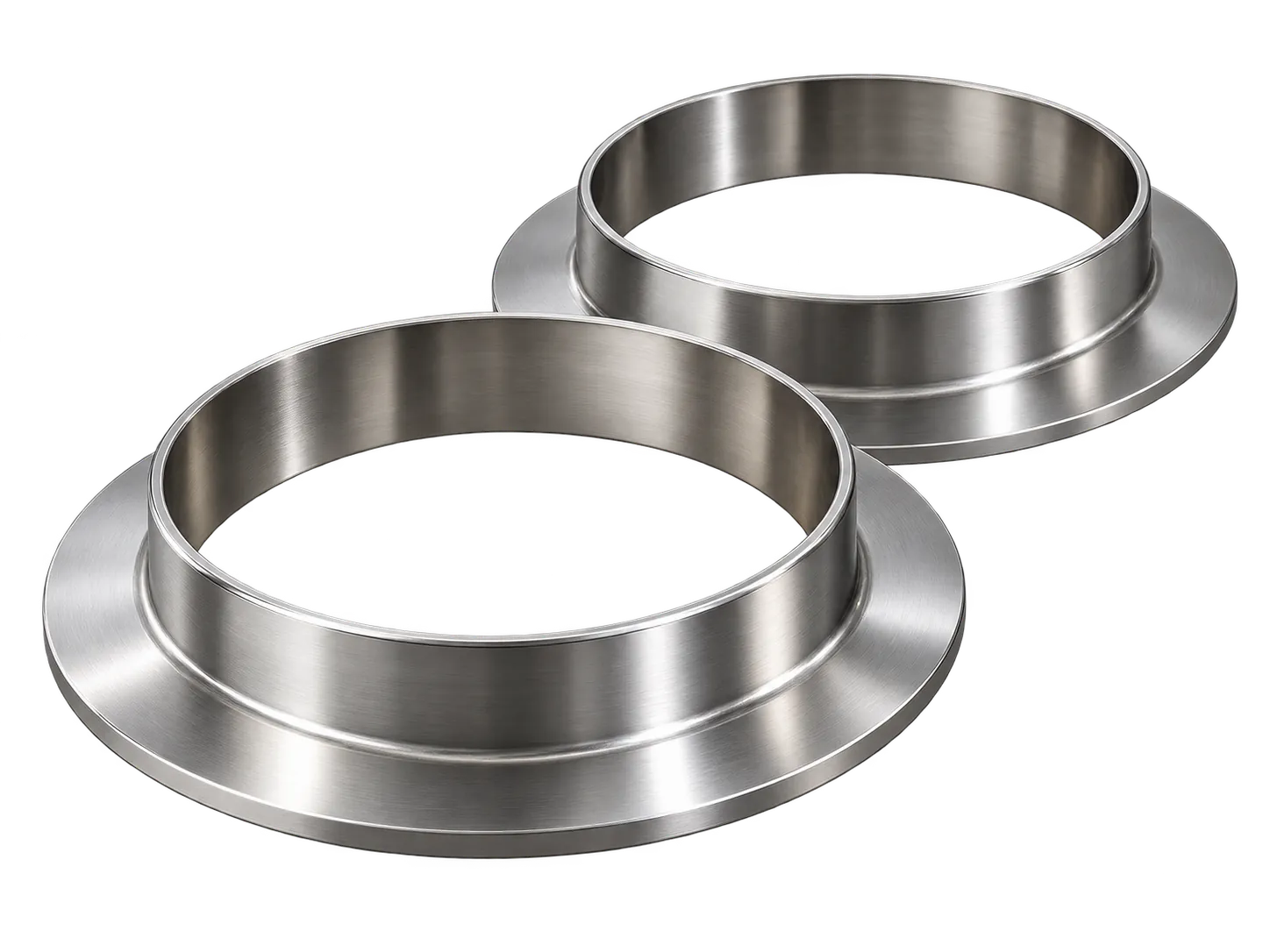

- Stainless Steel Collars (For Flanges)Formed collar in 304, 304L, 316 or 316L.
Product family
Roof drain parts
The plate that seats a roof drain in the deck opening.

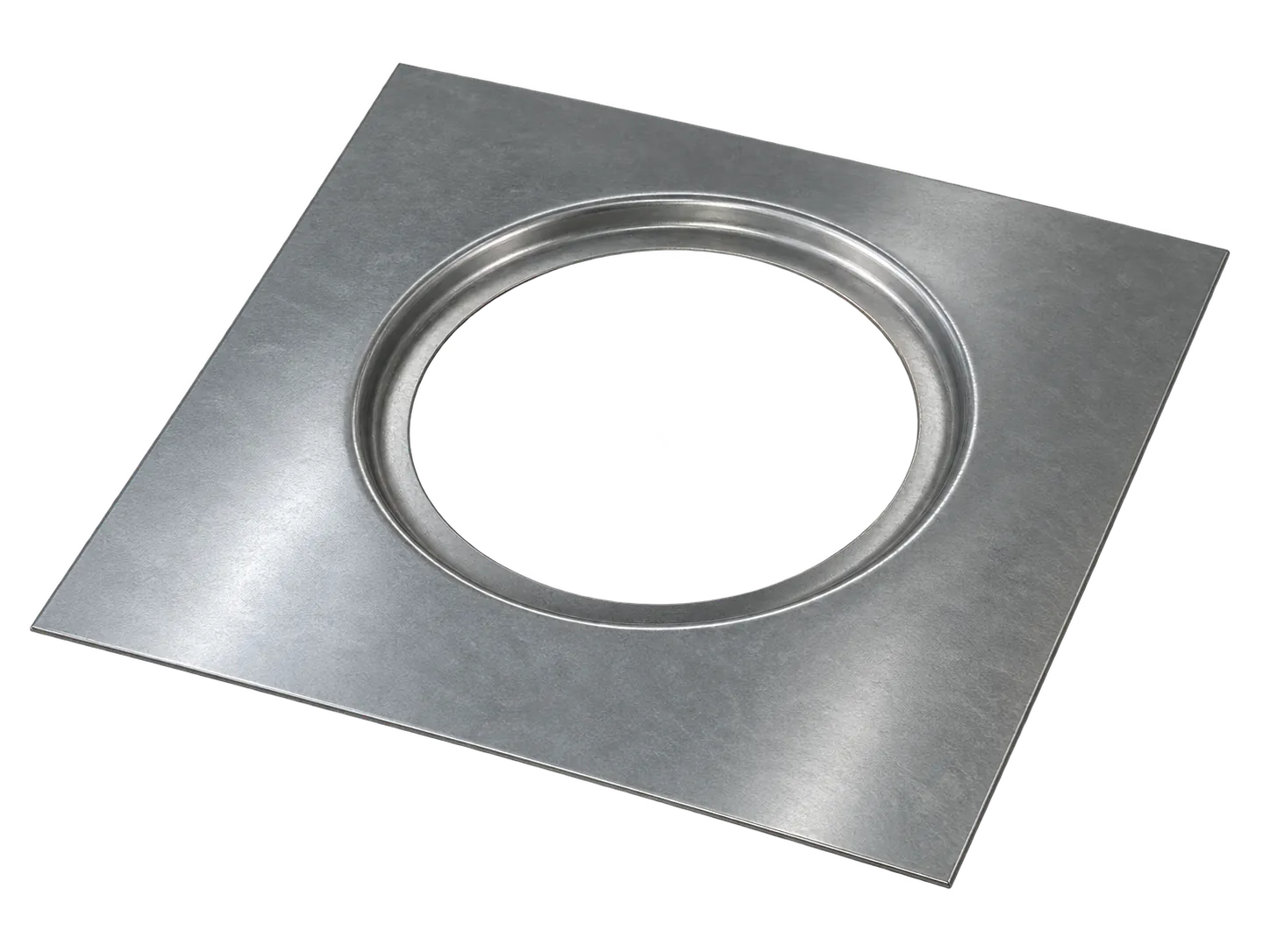

- Sump Receiver (Finish: Zinc Plated, Powder Coated)Square plate with a collar sized to the drain.
Where it's used
Parts that hang, join and drain pipework.
Plumbing, heating and cooling
Water, drainage, heating and chilled water pipes run under floors and along ceilings on clamps hung from threaded rod. Rubber-lined clamps quieten the pipe and stop it rubbing. Pipe Clamps and Threaded Rods / Bars cover it.
Sprinkler and fire mains
Sprinkler mains and branch lines are hung from the structure at set spacings on rods and clamps. Pipe Clamps and Threaded Rods / Bars cover it.
Process and stainless piping
Food, chemical and water-treatment plants run stainless pipe with flanged joints that can be opened for cleaning and maintenance. A collar welded to the pipe end lets a loose flange turn to line up its bolt holes. Stainless Steel Collars (For Flanges), Pipe Clamps and Threaded Rods / Bars cover it.
Roof drainage
Flat roofs on steel deck drain through roof drains set into sumps in the deck. A sump receiver fills the opening cut in the deck and carries the drain body at the right level. Sump Receiver (Finish: Zinc Plated, Powder Coated) covers it.
Pipe support assemblies
Three assemblies these parts make.
HANGERS
Rod-hung pipe support
A threaded rod drops from an anchor or beam clamp to a two-piece clamp around the pipe, and the nut on the rod sets the pipe to level.
Pipe Support Components
Threaded Rods / Bars
Diameter: 1/4" - 2-1/2" / M6 - M60 · Length: 2 ft - 19 ft (3, 6, 10, 12 ft common) / 1 m - 5.8 m (1, 2, 3 m common)
SpecificationsPipe Support Components
Pipe Clamps
Nominal Pipe Size: 1/2" - 30" / 15 mm - 750 mm · Thickness: 0.120" - 0.790" / 3 mm - 20 mm
SpecificationsFLANGES
Loose-flange stainless joint
A stainless collar welded to each pipe end is clamped between a pair of loose backing flanges, which turn freely to line up the bolt holes.
ROOF DRAINS
Roof drain in a metal deck
A sump receiver closes the hole cut in the deck and carries the drain body, so the roof falls to the drain and water leaves the roof at its lowest point.
How GV sources this
From specification to delivery in four steps.
Specify
You define the specification, drawing, or standard. We work with your engineering requirements—ASTM grades, dimensions, finishes, certifications.
Qualify partner
We audit and certify manufacturing partners in India. First-article inspection and approval. Blanket orders or scheduled releases as you need.
Inspect & document
Pre-shipment inspection and third-party verification on request. Mill test reports, coating certificates, dimensional reports—documentation packs in every container.
Deliver to US site
Consolidated shipments to US ports and job sites. Landed-cost pricing in USD. Single point of contact in Katy, Texas for order management and support.
Questions answered
Common questions about pipe support parts.
What pipe sizes do the clamps cover?
GV sources pipe clamps for 1/2 to 30 in (15 to 750 mm) pipe, in 3 to 20 mm strip thickness. Standard clamps feature a welded M8 / M10 boss for the hanger rod and come unlined or with EPDM rubber lining to dampen vibration.
Which threaded rod standards are available?
Threaded rod supplied in 1/4 to 2-1/2 in and M6 to M60, in UNC, BSW or metric pitch per DIN 975 and DIN 976. Your specification determines the grade: ASTM A307 carbon steel, class 4.8 and 8.8 metric, ASTM A193 B7, or stainless steel.
What is a stainless steel collar for a flange?
It is a formed stainless ring, also called a stub end, that is welded to the pipe end. A loose backing flange slides over it and clamps the joint, keeping the flange clear of the fluid and allowing it to turn freely to align bolt holes. GV supplies them in 304, 304L, 316 and 316L for 1/2 to 24 in pipe.
What does a sump receiver do?
A sump receiver is a steel plate with a raised round collar that fits into the opening cut in a metal roof deck. It carries the roof drain body and forms the sump for water drainage. GV supplies them in zinc-plated or powder-coated finish, sized to match the drain opening.
What finishes are available?
Pipe clamps and threaded rod come in plain, zinc-plated or hot-dip galvanized finish. Stainless collars are unfinished stainless steel. Sump receivers are available zinc-plated or powder-coated.
